EJOT® drillX
Specification
-
Applications

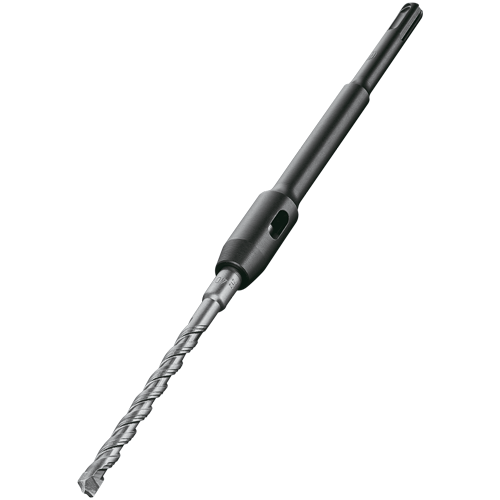

Specifically designed drill extension for use with short hard metal hammer drills (EJOT drill) with cone adaptor
- To drill extra deep holes
- To take up EJOT hard metal drills and EJOT stepdrills
-
Properties
- Decreased drilling costs when using anchors longer than 155 mm
- Improved transfer of the hammer impulse from the hammer drill over the drill extension
- Easier installation of additional layers of External Thermal Insulation Composite Systems
- The geometry of the drill extension expands the old render layer which facilitates anchor installation
-
Technical specifications
Characteristic values:
- With SDS-plus adaptor

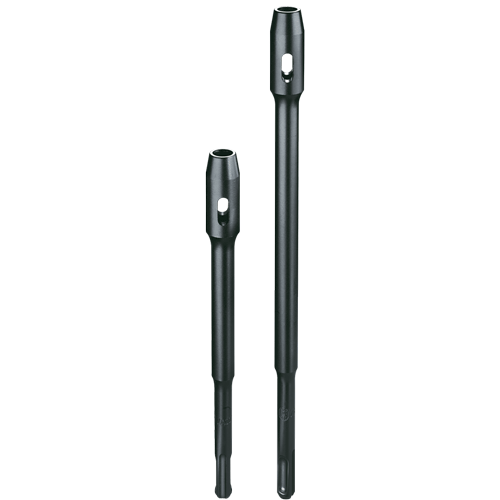

- Effective length:
EJOT drillX 200: 150 mm

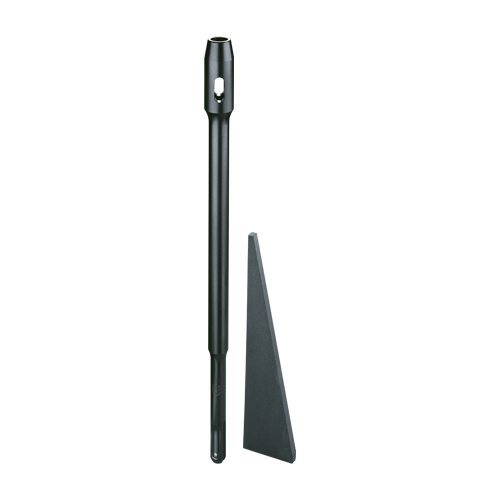

EJOT drillX 270: 220 mm - cone expeller included in delivery
ETICS products are only available from system suppliers
Filter
Selected filters
| Orderidentifier | Article Number | Unit |
|---|---|---|
| EJOT drillX 200 | W-9151950001 | 100 |
Specifications
|
||
| EJOT drillX 270 | W-9151950002 | 100 |
Specifications
|
