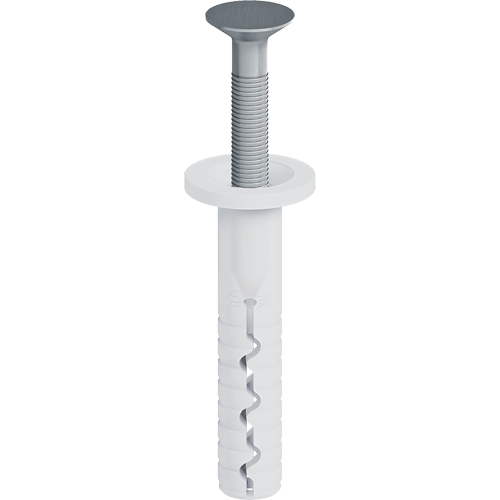

ejotherm® NK U

NK U

Specification

  • Applications

    • Fastening of rail-systems
    • Hammer-in anchor for rails
    • For fixing holding and base rails
    • Approved for concrete, solid and perforated masonry

  • Properties

    • Approved for concrete, solid and perforated masonry
    • Shortest embedment depths, minimum drill hole depths
    • High loads for high security • Premounted nail for quick installation
    • To compensate facade tolerances use spacers EJOT AS

  • Technical specifications

    Anchor diameter: 8 mm
    Collar diameter:16 mm
    Drill hole depth h1 >: 35 mm
    Embedment depth hef >: 25 mm
    Use categories acc. to ETA: A, B, C
    European Technical Approval: ETA-05/0009

    Values in parentheses: anchoring in aerated concrete (use category E)

ETICS products are only available from system suppliers

Filter

Selected filters

    Orderidentifier Article Number Anchor diameter mm Length mm Screw-in-/hammer-inanchor Unit
    ejotherm NK U 045 8797045400 8.0 45.0 Hammer-in anchor 100

    Specifications

    Anchor diameter
    8.0
    Length
    45.0
    Screw-in-/hammer-inanchor
    Hammer-in anchor
    Orderidentifier
    ejotherm NK U 045
    Unit
    100
    ejotherm NK U 065 8797065400 8.0 65.0 Hammer-in anchor 100

    Specifications

    Anchor diameter
    8.0
    Length
    65.0
    Screw-in-/hammer-inanchor
    Hammer-in anchor
    Orderidentifier
    ejotherm NK U 065
    Unit
    100
    ejotherm NK U 085 8797085400 8.0 85.0 Hammer-in anchor 100

    Specifications

    Anchor diameter
    8.0
    Length
    85.0
    Screw-in-/hammer-inanchor
    Hammer-in anchor
    Orderidentifier
    ejotherm NK U 085
    Unit
    100
