EJOT® Solar Fastener set JA3-SB-8.0xL with E16 + ORKAN storm washer

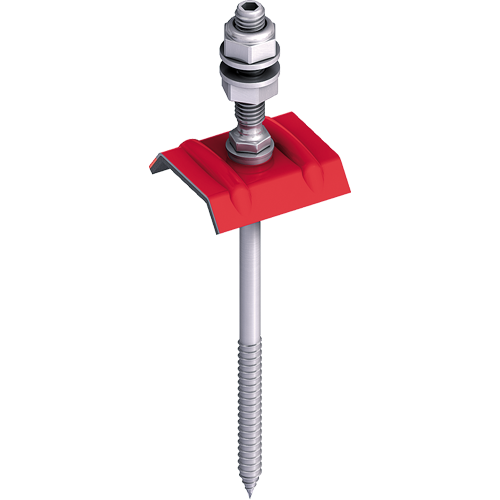

Solarbefestiger JA3 mit ORKAN-Kalotte Trapez

Specification

  • Applications

    • For fastening elevated solar and photovoltaic installations to timber substructures
    • Suitable for metal trapezoidal and corrugated profile sheets and sandwich panels

  • Properties

    • A2 stainless steel
    • In set with sealing washer E16 + ORKAN storm washer

    Benefits

    • Quick retrofitting on existing installations
    • Extremely safe fastening with direct load transfer into the substructure
    • No additional holes in the roofing membrane
    • Consistent installation depth
    • Use of proven sealing systems
    • Durable seal due to solid attachment point
    • Minimum installation and tool requirements
    • Project-related initial sizing possible

  • Technical specifications

    • Screw diameter: 8.0 mm
    • A/F5 hexagon drive

    Notice
    The solar fastener components are tailored to your project. Further versions upon request

Order information: ORKAN storm washers must be ordered separately with specification of the storm washer type. Standard scope of delivery includes: Hexagon nut DIN EN ISO 4032, self-locking hexagon nut DIN EN ISO 10511, washers DIN EN ISO 7089. Also available with screw nuts with locking serrations DIN EN ISO 1661.

Filter

Selected filters

    Orderidentifier Article Number ø mm Thread Length mm Unit
    Set JA3-SB-8.0x80/50 E16 3150891905 8.0 M10x50 80.0 25

    Specifications

    ø
    8.0
    Thread
    M10x50
    Length
    80.0
    Orderidentifier
    Set JA3-SB-8.0x80/50 E16
    Unit
    25
    Set JA3-SB-8.0x100/50 E16 3151091905 8.0 M10x50 100.0 25

    Specifications

    ø
    8.0
    Thread
    M10x50
    Length
    100.0
    Orderidentifier
    Set JA3-SB-8.0x100/50 E16
    Unit
    25
    Set JA3-SB-8.0x130/50 E16 3151391905 8.0 M10x50 130.0 25

    Specifications

    ø
    8.0
    Thread
    M10x50
    Length
    130.0
    Orderidentifier
    Set JA3-SB-8.0x130/50 E16
    Unit
    25
    Set JA3-SB-8.0x150/50 E16 3151591905 8.0 M10x50 150.0 25

    Specifications

    ø
    8.0
    Thread
    M10x50
    Length
    150.0
    Orderidentifier
    Set JA3-SB-8.0x150/50 E16
    Unit
    25
    Set JA3-SB-8.0x180/50 E16 3151891905 8.0 M10x50 180.0 25

    Specifications

    ø
    8.0
    Thread
    M10x50
    Length
    180.0
    Orderidentifier
    Set JA3-SB-8.0x180/50 E16
    Unit
    25
    Set JA3-SB-8.0x180/70 E16 3151891907 8.0 M10x70 180.0 25

    Specifications

    ø
    8.0
    Thread
    M10x70
    Length
    180.0
    Orderidentifier
    Set JA3-SB-8.0x180/70 E16
    Unit
    25
    Set JA3-SB-8.0x200/50 E16 3152091905 8.0 M10x50 200.0 25

    Specifications

    ø
    8.0
    Thread
    M10x50
    Length
    200.0
    Orderidentifier
    Set JA3-SB-8.0x200/50 E16
    Unit
    25
    Set JA3-SB-8.0x200/70 E16 3152091907 8.0 M10x70 200.0 25

    Specifications

    ø
    8.0
    Thread
    M10x70
    Length
    200.0
    Orderidentifier
    Set JA3-SB-8.0x200/70 E16
    Unit
    25
