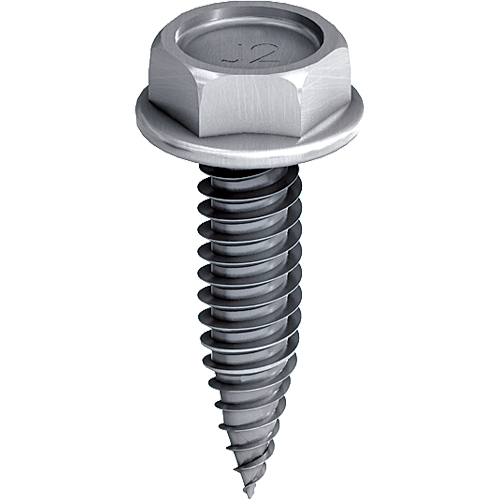

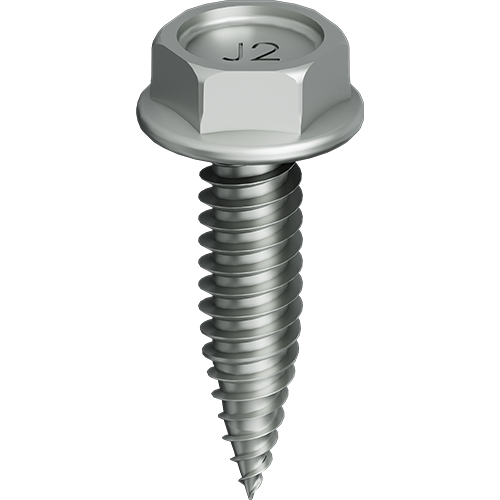

EJOFAST® self-drilling screw JF2-2H-4.8

JF2-2H-4,8

Specification

  • Applications

    • Side lap stitching of profiled steel sheets

  • Properties

    • Case-hardened steel, zinc-plated
    • Steel sealing washer, zinc-plated
    • Pre-assembled sealing washer
    • Fastening with reduced swarf
    • With free spin zone under screw head for side lap stitching
    • Non-skid application
    • Suitable for installation with the EJOFAST® JF screwdriver

  • Technical specifications

    • Diameter: 4.8 mm
    • Drilling capacity tI + tII: 0.88 + 0.88 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1800 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JF2-2H-4.8x19 V14 3591951694 4.8 14 19.0 0.0 - 9.0 1000

    Specifications

    ø
    4.8
    Ø Sealing Washer mm
    14
    Length
    19.0
    Clamp thickness
    0.0 - 9.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JF2-2H-4.8x19 V14
    Unit
    1000
    JF2-2H-4.8x19 PU100 6280628601 4.8 0 - none 19.0 0.0 - 9.0 100

    Specifications

    ø
    4.8
    Ø Sealing Washer mm
    0 - none
    Length
    19.0
    Clamp thickness
    0.0 - 9.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JF2-2H-4.8x19 PU100
    Unit
    100
    JF2-2H-4.8x19 7280628601 4.8 0 - none 19.0 0.0 - 9.0 1000

    Specifications

    ø
    4.8
    Ø Sealing Washer mm
    0 - none
    Length
    19.0
    Clamp thickness
    0.0 - 9.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JF2-2H-4.8x19
    Unit
    1000
