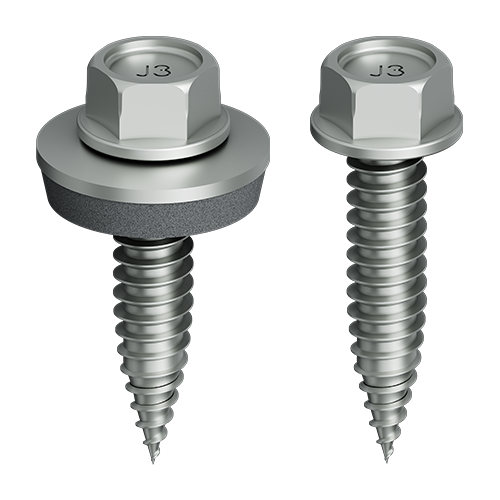

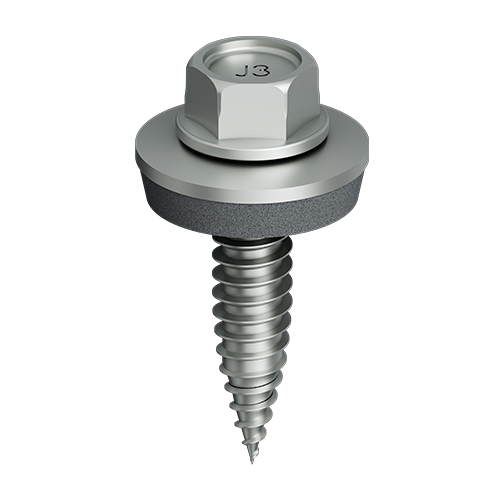

EJOFAST® self-drilling screw JF3-2-5.5
Specification
-
Applications
Fastening components and brackets to thin-walled metal profiles for photovoltaic installations:
- Fastening trapezoidal sheet flashings, clips for fixing standing seam systems or pre-punched retainers to thin-walled steel substructures (e.g. profiled sheets)
- Fixing wind deflector sheets to profiled elements
-
Properties
- A2 stainless steel with hardened steel drill point
- Stainless steel sealing washer
- Pre-assembled sealing washer
- Non-skid application
- Fastening with reduced swarf
- Excellent gripping properties
-
Technical specifications
- Diameter: 5.5 mm
- Drilling capacity tI + tII: 0.88 + 0.88 mm
- Drive: Hexagon A/F8
- Installation rotation speed: max. 1800 rpm
JF6 made of A4 stainless steel upon request
Filter
Selected filters
| Orderidentifier | Article Number | ø mm | Ø Sealing Washer mm | Length mm | Clamp thickness mm | Unit | |
|---|---|---|---|---|---|---|---|
| JF3-2-5.5x25-E16 | 3597211391 | 5.5 | 16 | 25.0 | 0.0 - 7.0 | Stainless Steel | 500 |
Specifications
|
|||||||
| JF3-2-5.5x25-E16 PU100 | 6597211391 | 5.5 | 16 | 25.0 | 0.0 - 7.0 | Stainless Steel | 100 |
Specifications
|
|||||||
| JF3-2-5.5x35-E16 | 3597511391 | 5.5 | 16 | 35.0 | 0.0 - 17.0 | Stainless Steel | 500 |
Specifications
|
