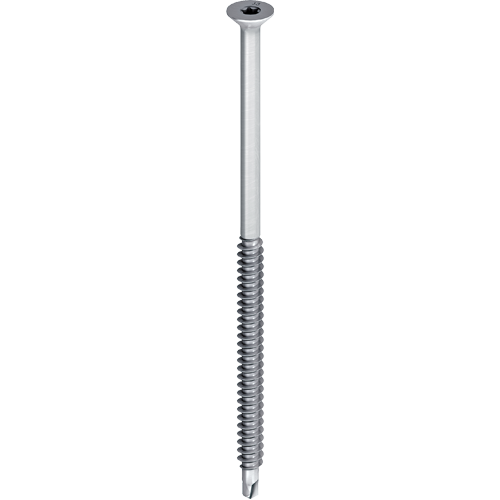

EJOT® Self-drilling screw JT3-ST-2-6.0

JT3-ST-2-6,0

Specification

  • Applications

    • Fastening rail systems with intermediate insulation to thin-walled steel, aluminium or timber substructure
    • Fastening timber parts to thin-walled steel or aluminium substructure

  • Properties

    • A2 stainless steel with hardened steel drill point
    • With countersunk head

  • Technical specifications

    • Diameter: 6.0 mm
    • Drilling capacity tI + tII: 1.0 + 1.0 mm
    • Drive: Hexalobular drive TX25
    • Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Clamp thickness mm Unit
    JT3-ST-2-6.0x35 7382160301 6.0 35.0 0.0 - 20.0 500

    Specifications

    ø
    6.0
    Length
    35.0
    Clamp thickness
    0.0 - 20.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-ST-2-6.0x35
    Unit
    500
    JT3-ST-2-6.0x60 7382125301 6.0 60.0 15.0 - 45.0 250

    Specifications

    ø
    6.0
    Length
    60.0
    Clamp thickness
    15.0 - 45.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-ST-2-6.0x60
    Unit
    250
    JT3-ST-2-6.0x80 7382107301 6.0 80.0 15.0 - 65.0 250

    Specifications

    ø
    6.0
    Length
    80.0
    Clamp thickness
    15.0 - 65.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-ST-2-6.0x80
    Unit
    250
    JT3-ST-2-6.0x100 7382101301 6.0 100.0 35.0 - 85.0 250

    Specifications

    ø
    6.0
    Length
    100.0
    Clamp thickness
    35.0 - 85.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-ST-2-6.0x100
    Unit
    250
    JT3-ST-2-6.0x120 7382102301 6.0 120.0 55.0 - 105.0 250

    Specifications

    ø
    6.0
    Length
    120.0
    Clamp thickness
    55.0 - 105.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-ST-2-6.0x120
    Unit
    250
    JT3-ST-2-6.0x140 7382103301 6.0 140.0 75.0 - 125.0 250

    Specifications

    ø
    6.0
    Length
    140.0
    Clamp thickness
    75.0 - 125.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-ST-2-6.0x140
    Unit
    250
    JT3-ST-2-6.0x160 7382104301 6.0 160.0 95.0 - 145.0 100

    Specifications

    ø
    6.0
    Length
    160.0
    Clamp thickness
    95.0 - 145.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-ST-2-6.0x160
    Unit
    100
    JT3-ST-2-6.0x180 7382105301 6.0 180.0 115.0 - 165.0 100

    Specifications

    ø
    6.0
    Length
    180.0
    Clamp thickness
    115.0 - 165.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-ST-2-6.0x180
    Unit
    100
    JT3-ST-2-6.0x200 7382106301 6.0 200.0 135.0 - 185.0 100

    Specifications

    ø
    6.0
    Length
    200.0
    Clamp thickness
    135.0 - 185.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-ST-2-6.0x200
    Unit
    100
