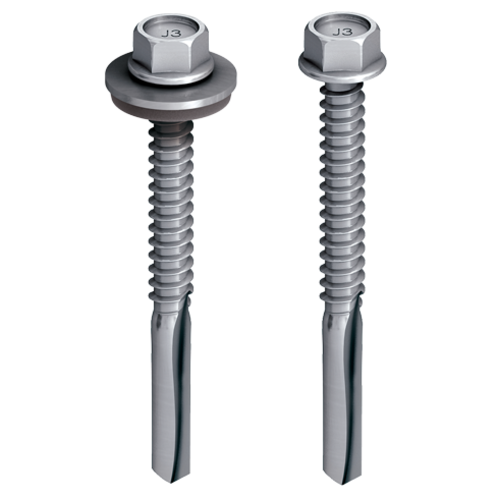

EJOT® self-drilling screw JT3-18-5.5

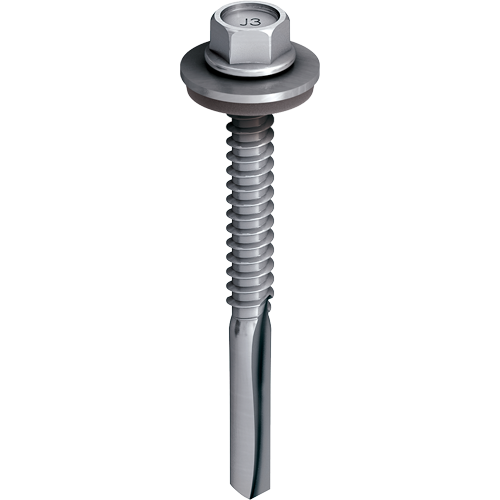

JT3-18_Bild

Specification

  • Applications

    • Fastening profiled steel or aluminium sheets and sandwich panels to 4 – 16 mm steel substructure

  • Properties

    • A2 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 2.0 + 16.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1300 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JT3-18-5.5x55-E16 3593011381 5.5 16 55.0 0.0 - 18.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    55.0
    Clamp thickness
    0.0 - 18.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-18-5.5x55-E16
    Unit
    500
    JT3-18-5.5x115-E16 3595011381 5.5 16 115.0 40.0 - 81.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    115.0
    Clamp thickness
    40.0 - 81.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-18-5.5x115-E16
    Unit
    100
    JT3-18-5.5x155-E16 3595511381 5.5 16 155.0 80.0 - 121.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    155.0
    Clamp thickness
    80.0 - 121.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-18-5.5x155-E16
    Unit
    100
    JT3-18-5.5x195-E16 3596011381 5.5 16 195.0 120.0 - 161.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    195.0
    Clamp thickness
    120.0 - 161.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-18-5.5x195-E16
    Unit
    100
    JT3-18-5.5x235-E16 3597511381 5.5 16 235.0 160.0 - 201.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    235.0
    Clamp thickness
    160.0 - 201.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-18-5.5x235-E16
    Unit
    100
    JT3-18-5.5x275-E16 3598011381 5.5 16 275.0 200.0 - 241.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    275.0
    Clamp thickness
    200.0 - 241.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-18-5.5x275-E16
    Unit
    100
