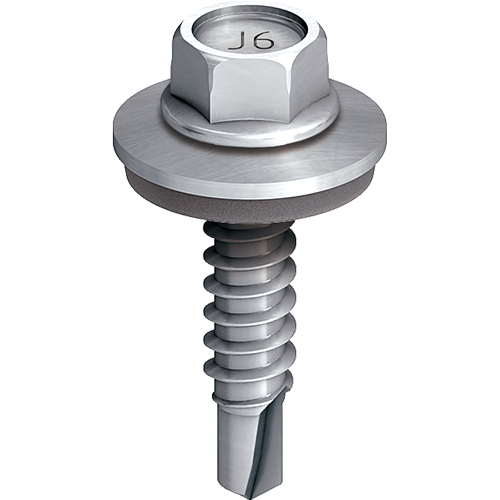

EJOT® self-drilling screw JT6-2H-Plus-5.5
Specification
-
Applications
- Side lap stitching of profiled steel and aluminium sheets
- Fastening profiled steel and aluminium sheets to cassette system walls
-
Properties
- A4 stainless steel with hardened drill point
- Stainless steel sealing washer
- Pre-assembled sealing washer
- With free spin zone under the screw head for side lap stitching
-
Technical specifications
- Diameter: 5.5 mm
- Drilling capacity tI + tII: 1.5 + 2.0 mm
- Drive: Hexagon A/F8
- Installation rotation speed: max. 1800 rpm
| Orderidentifier | Article Number | Ø Sealing Washer mm | Length mm | Clamp thickness mm | Fastener material | Unit |
|---|---|---|---|---|---|---|
| JT6-2H-PLUS-5.5x25 E16 | 3592281991 | 16 | 25.0 | 2.0 - 7.0 | Stainless Steel | 500 |
