EJOT® self-drilling screw JT3-FR-2H-Plus-5.5

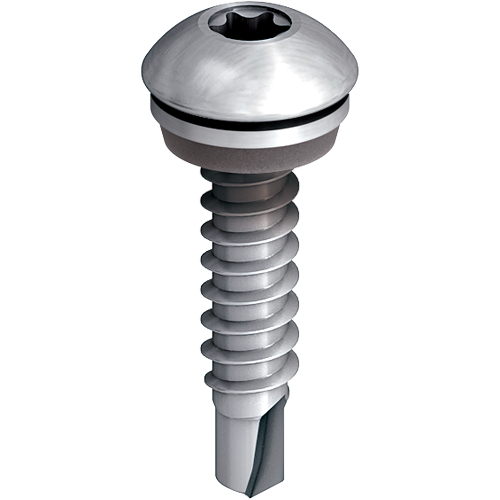

JT3-FR-2H-Plus-5,5

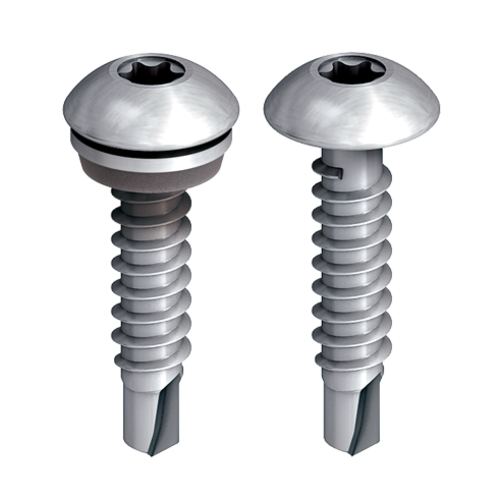

JT3-FR-2H-Plus-5,5_nw_2016

Specification

  • Applications

    • Side lap stitching of profiled steel and aluminium sheets
    • Fastening profiled steel and aluminium sheets to cassette system walls

  • Properties

    • A2 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • With free spin zone under screw head for side lap stitching
    • With truss head

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 1.5 + 2.0 mm
    • Drive: Hexalobular drive T25
    • Installation rotation speed: max. 1800 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JT3-FR-2H-Plus-5.5x25-E11 3592269398 5.5 11 25.0 0.0 - 7.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    11
    Length
    25.0
    Clamp thickness
    0.0 - 7.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-FR-2H-Plus-5.5x25-E11
    Unit
    500
    JT3-FR-2H-Plus-5.5x25-E11 PU100 6592269398 5.5 11 25.0 0.0 - 7.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    11
    Length
    25.0
    Clamp thickness
    0.0 - 7.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-FR-2H-Plus-5.5x25-E11 PU100
    Unit
    100
