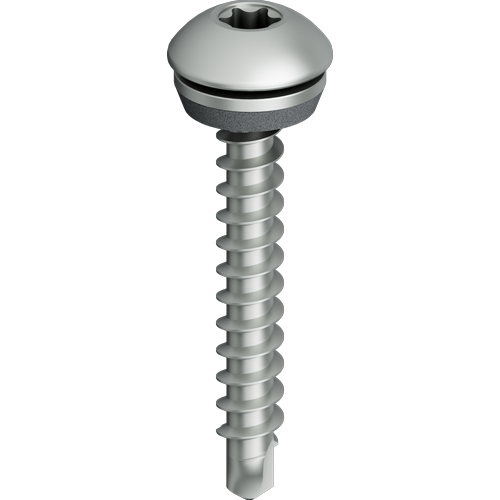

EJOT® self-drilling screw JT3-FR-2-4.9

JT3-FR-2-4,9x35-E11-Pos2

Specification

  • Applications

    • Fastening corrugated profile steel or aluminium sheets to timber substructure

  • Properties

    • A2 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • With truss head

  • Technical specifications

    • Diameter: 4.9 mm
    • Drilling capacity tI + tII: 1.0 + 1.0 mm
    • Drive: Hexalobular drive T25
    • Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Unit
    JT3-FR-2-4.9x35-E11 3593568328 4.9 11 35.0 500

    Specifications

    ø
    4.9
    Ø Sealing Washer mm
    11
    Length
    35.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-FR-2-4.9x35-E11
    Unit
    500
    JT3-FR-2-4.9x35-E11 PU100 6593568328 4.9 11 35.0 100

    Specifications

    ø
    4.9
    Ø Sealing Washer mm
    11
    Length
    35.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-FR-2-4.9x35-E11 PU100
    Unit
    100
