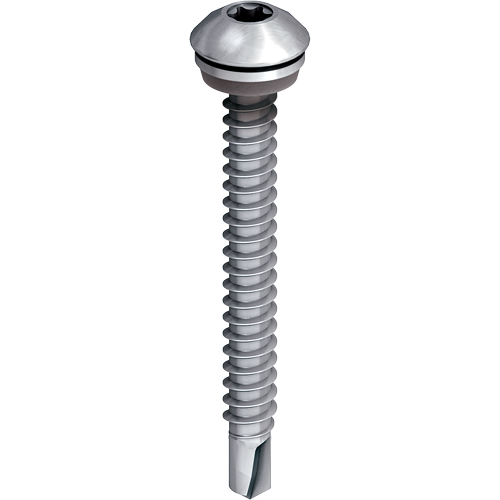

EJOT® self-drilling screw JT3-FR-3-5.5

JT3-FR-3-5,5

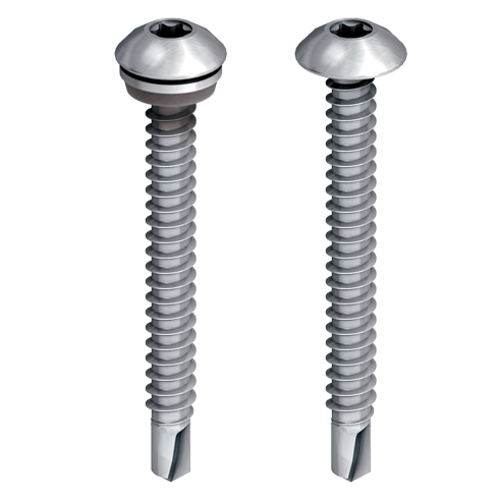

JT3-FR-3-5_5_nw_2016

Specification

  • Applications

    • Fastening corrugated profile steel sheet to 1–2.5 mm steel substructure
    • For fixing corrugated profile aluminium sheet to 1–2.5 mm aluminium or steel substructure

  • Properties

    • A2 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer

  • Technical specifications

    • Drilling capacity tI + tII: 1.0 + 2.5 mm
    • Drive: Hexalobular TX25
Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
JT3-FR-3-5.5x50-E11 3592869335 5.5 11 50.0 0.0 - 31.0 100

Specifications

ø
5.5
Ø Sealing Washer mm
11
Length
50.0
Clamp thickness
0.0 - 31.0
Fastener material
Stainless Steel
Orderidentifier
JT3-FR-3-5.5x50-E11
Unit
100
