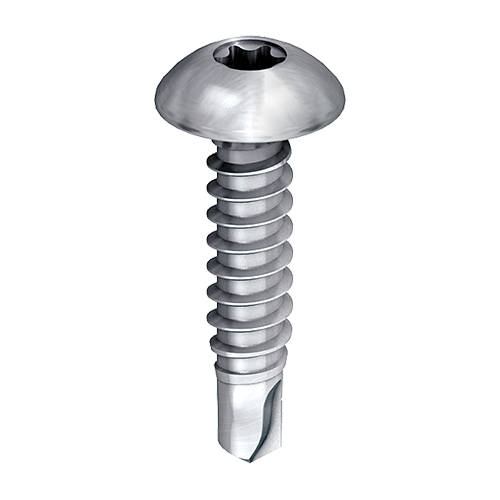

EJOT® self-drilling screw JT4-FR-4-5.5

JT4-FR-4-5,5_500x500

Specification

  • Applications

    • Fastening aluminium corrugated profile sheets to aluminium substructure ≤ 3 mm
    • Fastening facade panels to aluminium substructure

  • Properties

    • A2 stainless steel
    • With truss head

  • Technical specifications

    • Diameter: 5.5 mm
    • Drill capacity tI + tII: 1.0 + 3.0 mm
    • Drive: Hexalobular drive T25
    • Installation rotation speed: max. 1500 rpm
Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
JT4-FR-4-5.5x19 7381138300 5.5 0 - none 19.0 0.0 - 11.0 1000

Specifications

ø
5.5
Ø Sealing Washer mm
0 - none
Length
19.0
Clamp thickness
0.0 - 11.0
Fastener material
Stainless Steel
Orderidentifier
JT4-FR-4-5.5x19
Unit
1000
