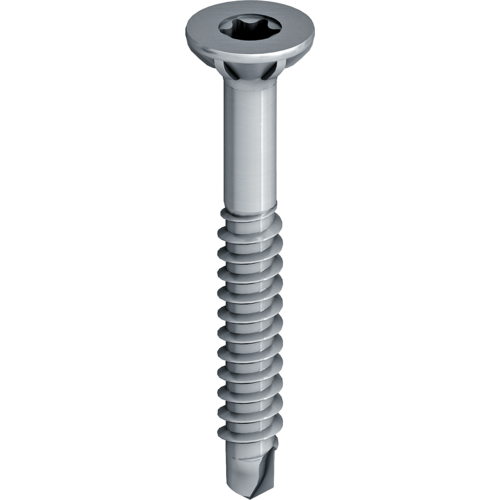

EJOT® self-drilling screw JT4-S-2-4.8

JT4-S-2-4,8x38

Specification

  • Applications

    • Fastening timber laths to aluminium substructure ≤ 2 mm

  • Properties

    • A2 stainless steel
    • Countersunk head with milling ribs

  • Technical specifications

    • Diameter: 4.8 mm
    • Drilling capacity tI + tII: 2.0 mm
    • Drive: Hexalobular TX25
    • Installation rotation speed: max. 1800 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm For timber thickness in mm Unit
    JT4-S-2-4.8x38 7382086300 4.8 38.0 20.0 - 30.0 500

    Specifications

    ø
    4.8
    Length
    38.0
    For timber thickness in
    20.0 - 30.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT4-S-2-4.8x38
    Unit
    500
    JT4-S-2-4.8x48 7382072300 4.8 48.0 30.0 - 40.0 500

    Specifications

    ø
    4.8
    Length
    48.0
    For timber thickness in
    30.0 - 40.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT4-S-2-4.8x48
    Unit
    500
