EJOT® self-drilling screw JT9-3H/5-5.5

JT9-3H-5-5,5

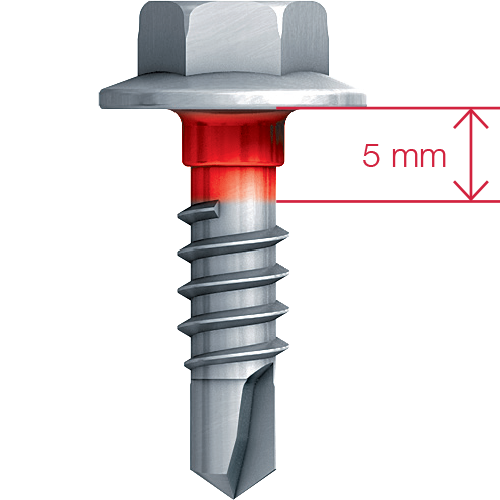

JT9-3H-5-5_5x19_foto2

Specification

  • Applications

    • To form floating and fixed points on substructures of rear ventilated facades
    • Fastening pre-drilled stainless steel or aluminium wall brackets to aluminium support profiles
    • For component assemblies from 3.1–5.0 mm (component I + component II)

    Notice
    Component assemblies checked with Rm (component II) ≥ 190, ≥ 215 und ≥ 245 N/mm2.  For bearing values, please refer to the general building authorities test certificate (abP) P-BWU02-148004.

  • Properties

    A4 stainless steel

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity: 3.0 mm
    • Drive: Hexagon A/F8
    • Flange head: Ø 13 mm
    • Length non-threaded part: 5.0 mm

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Unit
    JT9-3H/5-5.5x19 VE100 6380540340 5.5 19.0 100

    Specifications

    ø
    5.5
    Length
    19.0
    Clamp thickness
    3.1 - 5.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT9-3H/5-5.5x19 VE100
    Unit
    100
    JT9-3H/5-5.5x19 7380540340 5.5 19.0 500

    Specifications

    ø
    5.5
    Length
    19.0
    Clamp thickness
    3.1 - 5.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT9-3H/5-5.5x19
    Unit
    500
