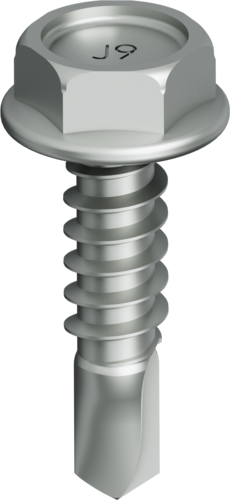

EJOT® self-drilling screw JT9-6-5.5

Specification

  • Applications

    • Fastening aluminium profiles to aluminium substructure ≤ 4 mm

  • Properties

    • A4 stainless steel
    • Stainless steel sealing washer
    • Pre-assembled sealing washer

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 2.0 + 4.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JT9-6-5.5x22-E16 3502111491 5.5 16 22.0 0.0 - 7.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    22.0
    Clamp thickness
    0.0 - 7.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT9-6-5.5x22-E16
    Unit
    500
    JT9-6-5.5x22 7380508341 5.5 0 - none 22.0 0.0 - 10.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    0 - none
    Length
    22.0
    Clamp thickness
    0.0 - 10.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT9-6-5.5x22
    Unit
    500
    JT9-6-5.5x30-E16 3502311341 5.5 16 30.0 0.0 - 11.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    30.0
    Clamp thickness
    0.0 - 11.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT9-6-5.5x30-E16
    Unit
    500
    JT9-6-5.5x30 7380509341 5.5 0 - none 30.0 0.0 - 18.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    0 - none
    Length
    30.0
    Clamp thickness
    0.0 - 18.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT9-6-5.5x30
    Unit
    500
