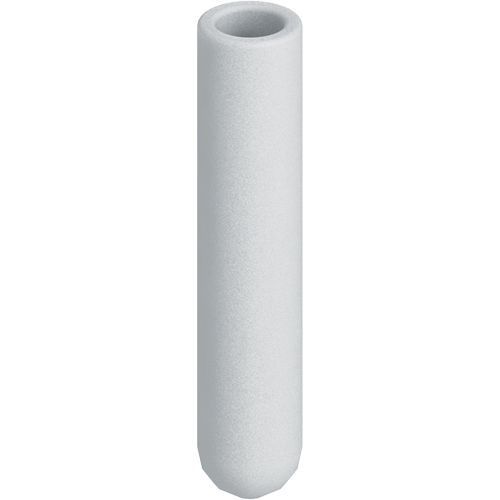

EJOT® Thread protection sleeve
Specification
-
Applications
- Thread end covering for EJOT® screws Ø 4.2 mm, Ø 4.8 mm, Ø 5.5 mm, Ø 6.3 mm and Ø 6.5 mm
-
Properties
- Soft plastic, RAL 9002 - grey-white or transparent
-
Which thread protection cap for which EJOT screw?
Which thread protection sleeve for which EJOT® screw?
JT...-2-4.2: 3.0x10
JF...-2H-4.8: 3.0x10
JT...-2H-4.8: 3.0x10
JT...-2-4.8: 3.0x10
Dabo ...-4.8: 4.5x25
Dabo ...-4.8: 4.5x35
JT...-3-4.8: 3.5x10
JT...-2H-5.5: 3.5x10
JT...-2H-Plus-5.5: 4.0x10
JT...-3H-5.5: 4.0x10
JT...-3-5.5: 4.0x10
JT...-4-5.5: 4.5x10
JT...-6-5.5: 4.5x10
JT...-8-5.5: 4.5x10
JT...-2H-6.3: 3.5x10
JT...-3H-6.3: 4.5x10
JT...-4-6.3: 4.5x10
JT...-6-6.3: 5.0x10
JT...-X-6.0: 5.5x10
JZ...-6.3: 5.5:x10
JA...-6.5: 5.5x10
Filter
Select system
-
other
Select unit
- Transparent
-
RAL
Select unit
- RAL9002
Selected filters
| Orderidentifier | Article Number | Head Colour | Internal diameter mm | Unit |
|---|---|---|---|---|
| Thread protection sleeve 3.0x10 | 8200010700 | 3.0 | 1000 | |
Specifications
|
||||
| Thread protection sleeve 3.5x10 | 8200011700 | 3.5 | 1000 | |
Specifications
|
||||
| Thread protection sleeve 4.0x10 | 8200012700 | 4.0 | 1000 | |
Specifications
|
||||
| Thread protection sleeve 4.5x10 | 8200013700 | 4.5 | 1000 | |
Specifications
|
||||
| Thread protection sleeve 5.0x10 | 8200014700 | 5.0 | 1000 | |
Specifications
|
||||
| Thread protection sleeve 5.5x10 | 8200015700 | 5.5 | 1000 | |
Specifications
|
||||
| Thread protection sleeve 3.0x10-9002 | 8200020700 | 3.0 | 1000 | |
Specifications
|
||||
| Thread protection sleeve 3.5x10-9002 | 8200021700 | 3.5 | 1000 | |
Specifications
|
||||
| Thread protection sleeve 4.0x10-9002 | 8200022700 | 4.0 | 1000 | |
Specifications
|
||||
| Thread protection sleeve 4.5x10-9002 | 8200023700 | 4.5 | 1000 | |
Specifications
|
||||
| Thread protection sleeve 5.0x10-9002 | 8200024700 | 5.0 | 1000 | |
Specifications
|
||||
| Thread protection sleeve 5.5x10-9002 | 8200025700 | 5.5 | 1000 | |
Specifications
|
||||
| Thread protection sleeve 4.5x25 | 8200043700 | 4.5 | 1000 | |
Specifications
|
||||
| Thread protection sleeve 4.5x25-9002 | 8200053700 | 4.5 | 1000 | |
Specifications
|
||||
| Thread protection sleeve 4.5x35-9002 | 8200054700 | 4.5 | 1000 | |
Specifications
|
