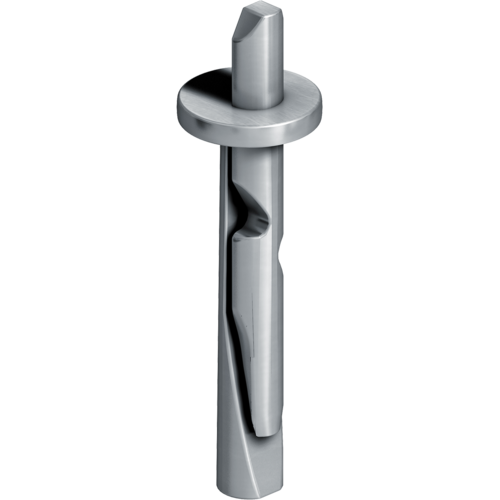

Ceiling nail

Specification

Applications
- For use as a multiple fastener of non-supporting systems in concrete
- Approved for concrete strengths from C20/25 to C50/60
Properties
- Multiple fastening
- High load bearing capacity in cracked and non-cracked concrete
- Small drill holes
- Fast and reliable installation
Technical specifications
- Drill-hole diameter d₀: 6 mm
- Drill hole depth ≥ h1: 40 mm
- embedment depth ≥ h_ef: 32 mm
- Min. component thickness h_min: 80 mm
- Min. edge distance c_min: 150 mm
- Min. centre distance s_min: 200 mm
- Max. attached part thickness t_fix: 5mm
- Height of the attached part ≤ t_fix: 5 mm

Orderidentifier	Article Number	Unit
T-DN 6-35 Ceiling nail	9700050035	100
Specifications Orderidentifier T-DN 6-35 Ceiling nail Unit 100
