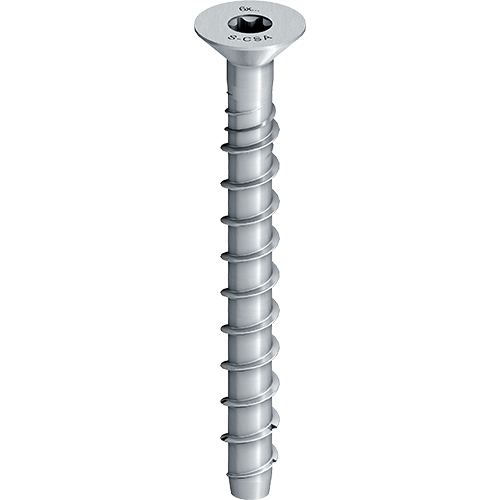

EJOT® Concrete screw JC2-ST 6

Produktbild1
Produktbild2

Specification

  • Applications

    • Facade scaffholds
    • Temporary fastening
    • Contact surfaces
    • Shelves
    • Cable racks
    • Battens

  • Properties

    • Galvanized zinc-plated steel
    • Countersunk head, hexalobular drive
    • ETA-approved concrete screw for cracked and non-cracked concrete
    • Self-tapping approved screw anchor for push-through installation
    • No expansion forces, hence small edgee and centre distances possible
    • Completely removable
    • For dry indoor areas

  • Embedment substrates

    • Approved for cracked concrete and non-cracked concrete and also for pre-stressed hollow core slab
    • Also suitable for bricks and solid brick sandstone

Filter

Selected filters

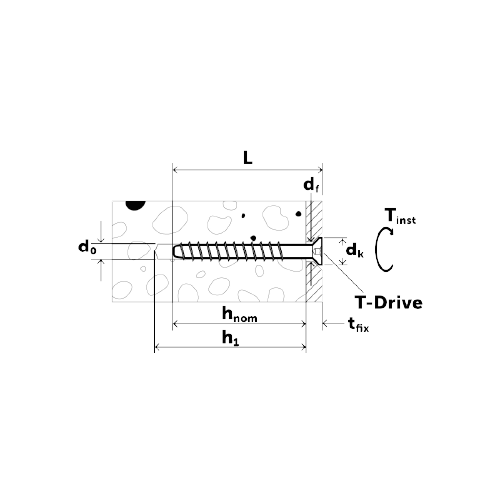

    Orderidentifier Article Number Embedment depth hef≥ mm Length mm Clamp thickness mm Drill hole depth mm Pilot Hole Ø mm Unit
    Concrete screw JC2-ST 6x60/5/20 9650071609 44.0 60.0 5.0 - 20.0 65.0 6.0 100

    Specifications

    Embedment depth hef≥
    44.0
    Length
    60.0
    Clamp thickness
    5.0 - 20.0
    Drill hole depth
    65.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    Concrete screw JC2-ST 6x60/5/20
    Unit
    100
    Concrete screw JC2-ST 6x100/45/60 9650071617 44.0 100.0 45.0 - 60.0 65.0 6.0 50

    Specifications

    Embedment depth hef≥
    44.0
    Length
    100.0
    Clamp thickness
    45.0 - 60.0
    Drill hole depth
    65.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    Concrete screw JC2-ST 6x100/45/60
    Unit
    50
