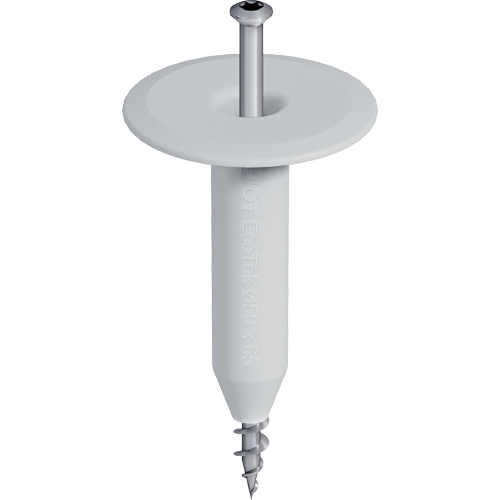

EJOT® aerated concrete screw FPS-E/EcoTek

FPS-E+EcoTek

Specification

  • Applications

    • To fix roofing membrane to aerated concrete substructures

    Notice

    Pull-out tests have to be arranged with our service team for all renovation cases.

  • Properties

    • Screw: stainless steel
    • Stress plate: high-grade plastic material
    • Approved for P3.3 aerated concrete onwards
    • No pre-drilling

  • Technical specifications

    • Embedment depth: ≥ 60 mm
    • Drive: Hexalobular drive T30

Filter

Selected filters

    Orderidentifier Article Number Insulation thickness mm Recess Depth mm Screw length mm Unit
    FPS-E/EcoTek-50-35/100 2703501030 50.0 25.0 100.0 100

    Specifications

    Insulation thickness
    50.0
    Recess Depth
    25.0
    Screw length
    100.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E/EcoTek-50-35/100
    Unit
    100
    FPS-E/EcoTek-70-35/120 2703501230 70.0 25.0 120.0 100

    Specifications

    Insulation thickness
    70.0
    Recess Depth
    25.0
    Screw length
    120.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E/EcoTek-70-35/120
    Unit
    100
    FPS-E/EcoTek-80-65/100 2706501030 80.0 55.0 100.0 100

    Specifications

    Insulation thickness
    80.0
    Recess Depth
    55.0
    Screw length
    100.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E/EcoTek-80-65/100
    Unit
    100
    FPS-E/EcoTek-100-65/120 2706501230 100.0 55.0 120.0 100

    Specifications

    Insulation thickness
    100.0
    Recess Depth
    55.0
    Screw length
    120.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E/EcoTek-100-65/120
    Unit
    100
    FPS-E/EcoTek-120-105/100 2710501030 120.0 95.0 100.0 100

    Specifications

    Insulation thickness
    120.0
    Recess Depth
    95.0
    Screw length
    100.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E/EcoTek-120-105/100
    Unit
    100
    FPS-E/EcoTek-140-105/120 2710501230 140.0 95.0 120.0 100

    Specifications

    Insulation thickness
    140.0
    Recess Depth
    95.0
    Screw length
    120.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E/EcoTek-140-105/120
    Unit
    100
    FPS-E/EcoTek-160-105/140 2710501430 160.0 105.0 140.0 100

    Specifications

    Insulation thickness
    160.0
    Recess Depth
    105.0
    Screw length
    140.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E/EcoTek-160-105/140
    Unit
    100
    FPS-E/EcoTek-180-165/100 2716501030 180.0 155.0 100.0 100

    Specifications

    Insulation thickness
    180.0
    Recess Depth
    155.0
    Screw length
    100.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E/EcoTek-180-165/100
    Unit
    100
    FPS-E/EcoTek-200-165/120 2716501230 200.0 155.0 120.0 100

    Specifications

    Insulation thickness
    200.0
    Recess Depth
    155.0
    Screw length
    120.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E/EcoTek-200-165/120
    Unit
    100
    FPS-E/EcoTek-240-225/100 2722501030 240.0 215.0 100.0 100

    Specifications

    Insulation thickness
    240.0
    Recess Depth
    215.0
    Screw length
    100.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E/EcoTek-240-225/100
    Unit
    100
