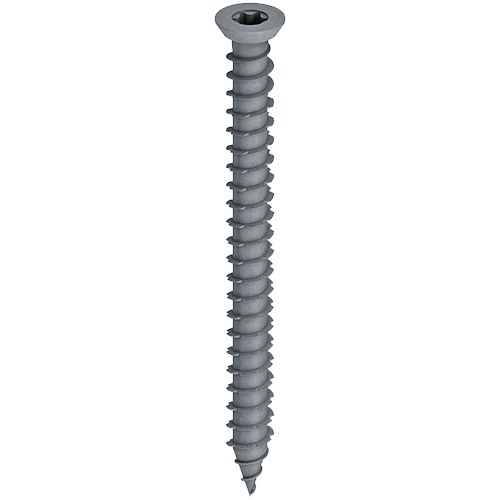

EJOT® concrete screw JBS-R-7.5

Specification

Applications
- To fix roofing membranes to concrete substructures
- For combination with EJOT stress plate EcoTek 50
Properties
- Case-hardended steel
- Climadur coated - high - quality coating to improve corrosion protection (15 Kesternich cycles, DIN 50018, 1997)
Technical specifications
- Diameter: 7.5 mm
- Embedment depth ≥ 30 mm
- Nominal drill diameter: 6.0 mm
- Hole depth: ≥ 35 mm
- Drive: hexalobular TX30

Orderidentifier	Article Number	Length mm	Unit
JBS-R-7.5x80	2231080609	80.0	100
Specifications Length 80.0 Orderidentifier JBS-R-7.5x80 Unit 100
JBS-R-7.5x120	2231120609	120.0	100
Specifications Length 120.0 Orderidentifier JBS-R-7.5x120 Unit 100
JBS-R-7.5x150	2231150609	150.0	100
Specifications Length 150.0 Orderidentifier JBS-R-7.5x150 Unit 100
JBS-R-7.5x210	2231210609	210.0	100
Specifications Length 210.0 Orderidentifier JBS-R-7.5x210 Unit 100
	2231300609	300.0
Specifications Length 300.0 Orderidentifier Unit
