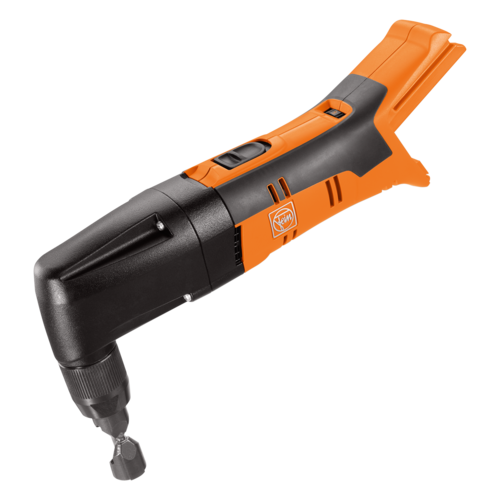

Battery powered nibbler ABLK 18 1.6 E Select

Specification

Applications
- Compact nibbler suitable for bends for roof and facade construction
- Precise cuts in trapezoidal and corrugated sheets as well as profiles
Properties
- Cutting performance 40 m in 0.8 mm trapezoidal profiled sheet with one battery
- 1.5 m/min cutting speed for outstanding work progress
- Variable cutting speed due to electronically adjustable number of strokes
- Short-term overlapping 2.6 mm
- Optimum handling due to extremely small gear head
- Light weight
- QuickIN quick change system of plate and die
- Rotating die for up to 30 % longer service life
- In 45° steps variable by 360°" adjustable cutting direction due to no-tool rotatable die-plate support
- Proven MultiMaster Motor with outstanding performance and service life
- Low operating costs. Die and die-plate are exchanged independently
Technical specifications

Battery voltage: 18 V
Stroke rate: 1 300 rpm
Cutting speed: 1.5 m/min
Weight without battery: 1.6 kg
Steel up to 400 N/mm²: 1.6 mm
Steel up to 600 N/mm²: 1.0 mm
Steel up to 800 N/mm²: 0.7 mm
Nonferrous metal up to 250 N/mm²: 2.5 mm
Cutting line width: 5 mm
Dipping Ø with die 24 mm: 22 mm
Radius of the smallest curve (inside/outside): 0/35 mm
Battery pack: X

Orderidentifier	Article Number	Unit
Battery powered nibbler ABLK 18 1.6 E Select	9150400000	1
Specifications Orderidentifier Battery powered nibbler ABLK 18 1.6 E Select Unit 1
Punch guiding for profile set 160 for ABLK 1.6 E	9152400010	1
Specifications Orderidentifier Punch guiding for profile set 160 for ABLK 1.6 E Unit 1
