Battery powered nibbler ABLK 1.6 E
Specification
-
Applications
- Universal nibbler for trapezoidal and sinusoidal sheet as well as profiles and sheet metal
- Up to 1.6 mm

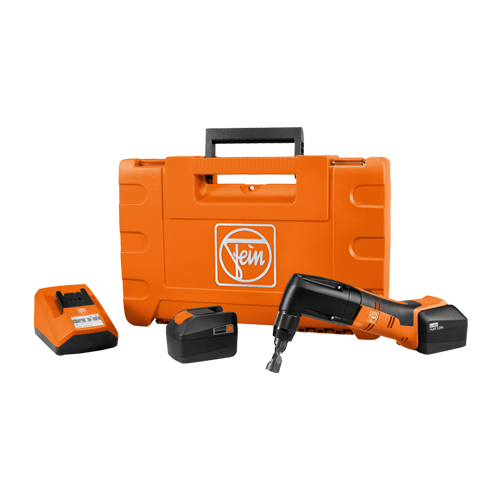

Included in delivery
- 1 ABLK 1.6 E in plastic tool case
- 1 rapid charger ALG 50
- 2 battery packs (Li-Ion)
- 1 die-plate carrier for trapezoidal and sinusoidal sheet
- 1 punch
- 1 die
-
Properties
- Cutting performance 30 m in 0.8 mm trapezoidal profiled sheet with one battery
- 2.3 m/min cutting speed for outstanding work progress
- Variable cutting speed due to electronically adjustable number of strokes
- Short-term overlapping 2.6 mm
- Optimum handling due to extremely small gear head
- Over 1,000 recharge cycles per battery pack
- Light weight of only 2.1 kg
- QuickIN quick change system
- Rotating die for up to 30 % longer service life
- In 45° steps variable by 360° adjustable cutting direction due to no-tool rotatable die-plate support
- Proven MultiMaster Motor with outstanding performance and service life
- Low operating costs. Die and die-plate are exchanged independently.
-
Technical specifications
- Battery voltage: 14.4 V
- Battery capacity: 3.0 Ah
- Stroke rate: 1300 rpm
- Cutting speed: 1.5 m/min
- Weight acc. to EPTA: 2.0 kg
- Steel up to 400 N/mm²: 1.6 mm
- Steel up to 600 N/mm²: 1.0 mm
- Steel up to 800 N²mm²: 0.7 mm
- Nonferrous metal up to 250 N/mm²: 2.5 mm
- Cutting line width: 5 mm
- Dipping Ø with die: 22 mm
- Radius of he smallest curve (inside/outside) 30/35 mm
Filter
Selected filters
| Orderidentifier | Article Number | Weight kg | Battery capacity Ah | Unit |
|---|---|---|---|---|
| Die for profile set 160 | 9152400004 | 2.1 | 30.0 | 100 |
Specifications
|
||||
| Punch for profile set 160 | 9152400005 | 2.1 | 30.0 | 100 |
Specifications
|
||||
| Wear plate for profile set 160 | 9152400006 | 2.1 | 30.0 | 100 |
Specifications
|
||||
| Die-plate carrier for profile set 160 | 9152400007 | 2.1 | 30.0 | 100 |
Specifications
|
