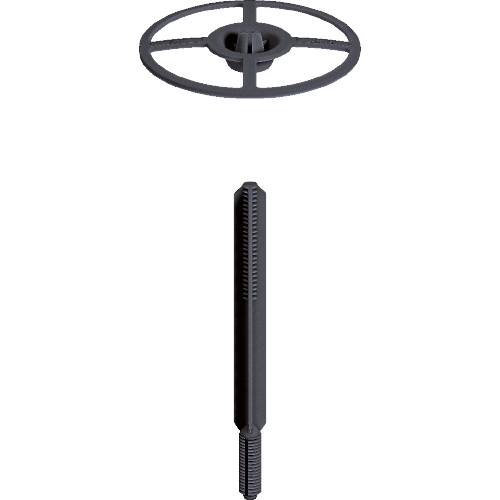

  5. EJOT® Insulation support anchor DH - 2 Piece

EJOT® Insulation support anchor DH - 2 Piece

DH-zweiteilig
Dämmhalter-DH-zweiteilig

Specification

  • Applications

    • For fixing insulating material in the rear ventilated facade (VHF).

    Advantages

    • Prevents "quilt effect" (indentations in the insulation) with retrofitting of the washer
    • Prevents gaping of the joints between the individual insulation panels at the joining edges
    • Packing and handling volume is reduced by over 60% compared to one-part insulation support anchors
    • Installation depth limiter guarantees defined installation independent of the substrate
    • Equal installation depth for masonry and concrete prevents wrong orders.
    • High-quality plastic material guarantees process reliable installation even with thick insulation
    • For efficient and flexible storage

  • Properties

    • Order descriptions correspond to the
    • High-grade plastic material
    • easy installation with no additional expansion element
    • All-purpose for all building materials
    • flexible stress plate
    • Reduced "quilt effect", due to defined installation depth
    • Minimal packing volume
    • Minimal effort needed to drive in the anchor

  • Technical specifications

    • Drill bit diameter: 8 mm
    • Drill hole depth ≥ t: 40 mm
    • Embedment depth ≥ hv: 30 mm
    • Disc washer diameter: 90 mm
    • Thermal conductivity coefficient: 0.0001 W/K
    • Carrying capacity (pull over washer): 0.2 kN
Attention: Please also order the appropriate number of washers!

Filter

Selected filters

    Orderidentifier Article Number ø mm Material Insulation thickness mm Unit
    Washer DH 8550090999 90.0 Plastic 300

    Specifications

    ø
    90.0
    Material
    Plastic
    Insulation thickness
    Orderidentifier
    Washer DH
    Unit
    300
    Shaft DH 60 8550060999 8.0 Plastic 60.0 300

    Specifications

    ø
    8.0
    Material
    Plastic
    Insulation thickness
    60.0
    Orderidentifier
    Shaft DH 60
    Unit
    300
    Shaft DH 80 8550080999 8.0 Plastic 80.0 300

    Specifications

    ø
    8.0
    Material
    Plastic
    Insulation thickness
    80.0
    Orderidentifier
    Shaft DH 80
    Unit
    300
    Shaft DH 100 8550100999 8.0 Plastic 100.0 300

    Specifications

    ø
    8.0
    Material
    Plastic
    Insulation thickness
    100.0
    Orderidentifier
    Shaft DH 100
    Unit
    300
    Shaft DH 120 8550120999 8.0 Plastic 120.0 300

    Specifications

    ø
    8.0
    Material
    Plastic
    Insulation thickness
    120.0
    Orderidentifier
    Shaft DH 120
    Unit
    300
    Shaft DH 140 8550140999 8.0 Plastic 140.0 300

    Specifications

    ø
    8.0
    Material
    Plastic
    Insulation thickness
    140.0
    Orderidentifier
    Shaft DH 140
    Unit
    300
    Shaft DH 160 8550160999 8.0 Plastic 160.0 300

    Specifications

    ø
    8.0
    Material
    Plastic
    Insulation thickness
    160.0
    Orderidentifier
    Shaft DH 160
    Unit
    300
    Shaft DH 180 8550180999 8.0 Plastic 180.0 300

    Specifications

    ø
    8.0
    Material
    Plastic
    Insulation thickness
    180.0
    Orderidentifier
    Shaft DH 180
    Unit
    300
    Shaft DH 200 8550200999 8.0 Plastic 200.0 300

    Specifications

    ø
    8.0
    Material
    Plastic
    Insulation thickness
    200.0
    Orderidentifier
    Shaft DH 200
    Unit
    300
    Shaft DH 220 8550220999 8.0 Plastic 220.0 300

    Specifications

    ø
    8.0
    Material
    Plastic
    Insulation thickness
    220.0
    Orderidentifier
    Shaft DH 220
    Unit
    300
