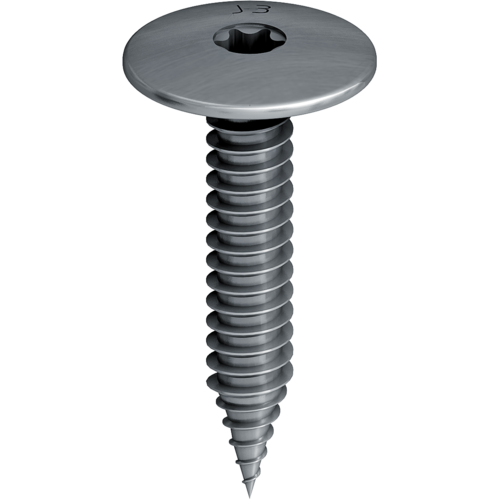

EJOFAST® self-drilling screw JF3-LT-2-5.5 KD16

Applications

• For fixing facade pannels to 0.4 - 1.0 mm aluminium substructures with reduced swarf
• Can be combined with LT fixed and sliding point sleeves

Properties

• Pan head
• To cover slotted holes and large pre-drill diameters
• Also available as laquered version
• Flat screw head for aesthetic facade design
• Wobble-free fastening by using LT tool
• Stainless steel with hardened steel drill point
• Fastening with reduced swarf

Technical specifications

• Diameter: 5.5 mm
• Drilling capacity (t_I pre-drilled) t_II: 1.5 mm
• Drive: Hexalobular drive T25
• Head diameter: 16 mm
• Head height: 2.0 mm

Note

Please note the respective approval of the facade panel and the assembly instructions of the manufacturer.
JF screw requires more axial pressure than JT screw with classic cutting bit in order to penetrate component II.

Processing information for sliding points on facade panels

Stop fastening as soon as the screw head connects to the surface and turn the screw back a quarter turn in order to remove the clamp load from the connection.
