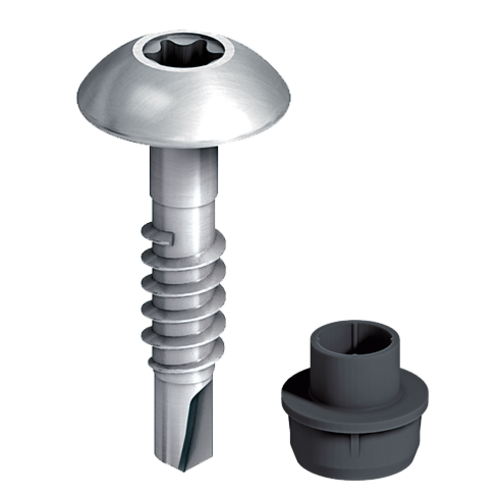

EJOT® self-drilling screw JT4-FR-2H/6-4.8

JT4 FR 2H6 4.8 ACM b.png
Produktbild2

Specification

  • Applications

    • Fastener for ALUCOBOND® external wall cladding according to Z-33.2-6
    • For fastening without forcing tension to 2 mm aluminium substructures

    Notice

    We recommend the tapered special bit hexalobular drive TX25W-1/4"/Cx25 for force fit in the fastener head. To form fixed points , we recommend pre-drilling a Ø 4.0 mm hole in the panel.

  • Properties and advantages

    • A2 stainless steel
    • With centring bush to form floating points

    Benefits

    • Centred drilling and simultaneous fastening of the boards to the substructure
    • No pre-drilling of the substructre

  • Technical specifications

    • Diameter: 4.8 mm
    • Drilling capacity tI + tII: 1.0 + 3.0 mm
    • Drive: Hexalobular TX25
    • Ø drill hole centring bush: 8.0 mm

Filter

Selected filters

    Orderidentifier Article Number Fastener material Unit
    JT4-FR-2H/6-4.8x22* 7384170300 Stainless Steel 1000

    Specifications

    Fastener material
    Stainless Steel
    Orderidentifier
    JT4-FR-2H/6-4.8x22*
    Unit
    1000
    Centring bush 3010003700 Stainless Steel 500

    Specifications

    Fastener material
    Stainless Steel
    Orderidentifier
    Centring bush
    Unit
    500
