EJOFAST® self-drilling screw JF2-2H-4.8x19 collated

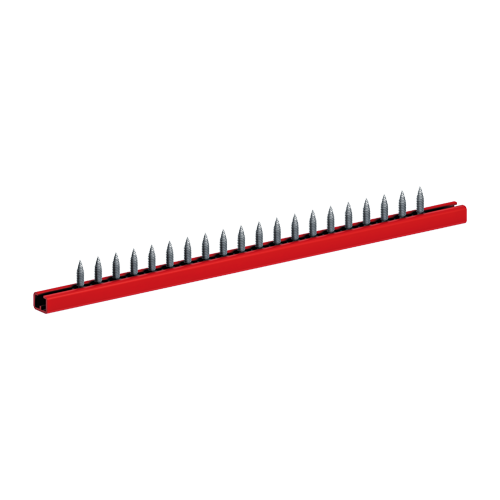

Magazinstreifen_JF2

Specification

  • Applications

    • Side lap stitching of profiled steel sheets

  • Properties

    • Case-hardened steel, zinc-plated
    • Steel sealing washer, zinc-plated
    • Pre-assembled sealing washer
    • Fastening with reduced swarf
    • With free spin zone under screw head for side lap stitching
    • Non-skid application
    • Collated (20 per cartidrige) suitable for fixing with the EJOFAST® JF screwdriver

  • Technical specifications

    • Diameter: 4.8 mm
    • Drill capacity tI + tII: 0.88 + 0.88 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1800 rpm
Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Unit
JF2-2H-4.8x19-collated 3375000000 4.8 0 - none 19.0 500

Specifications

ø
4.8
Ø Sealing Washer mm
0 - none
Length
19.0
Clamp thickness
0.0 - 9.0
Fastener material
Carbon Steel
Orderidentifier
JF2-2H-4.8x19-collated
Unit
500
