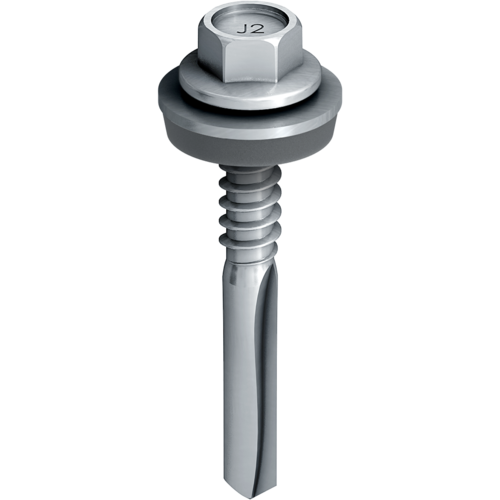

EJOT® self-drilling screw JT2-18-5.5 EJOGUARD

JT2-18-5,5_Pos2

Specification

  • Applications

    • Fastening profiled steel sheets to 4 – 16 mm steel substructure

  • Properties

    • Case-hardened steel
    • EJOGUARD corrosion protection
    • Steel sealing washer, zinc-plated
    • Pre-assembled sealing washer

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 2.0 + 16.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1300 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Unit
    JT2-18-5.5x40-V16 3914021997 5.5 40.0 500

    Specifications

    ø
    5.5
    Length
    40.0
    Clamp thickness
    0.0 - 12.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-18-5.5x40-V16
    Unit
    500
    JT2-18-5.5x80-V16 EJOGUARD 3198021997 5.5 80.0 250

    Specifications

    ø
    5.5
    Length
    80.0
    Clamp thickness
    18.0 - 52.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-18-5.5x80-V16 EJOGUARD
    Unit
    250
