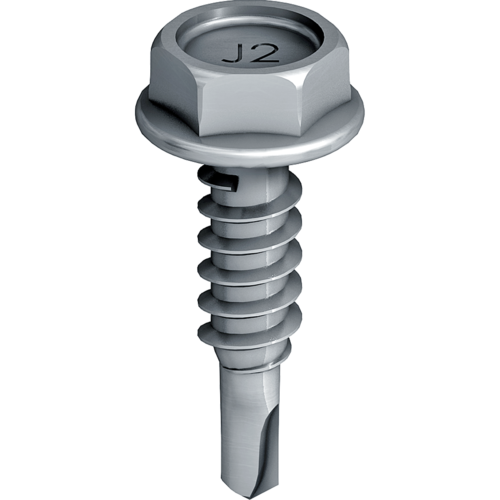

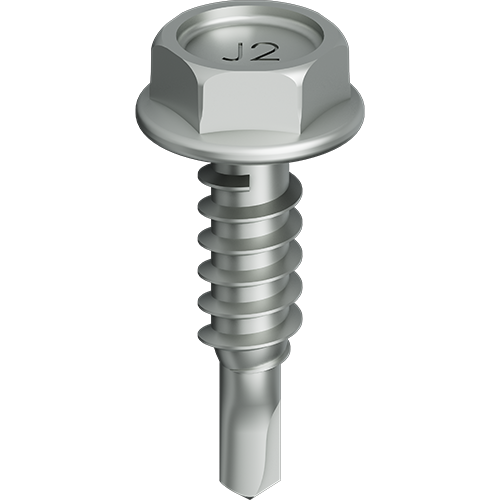

EJOT® self-drilling screw JT2-2H-4.8

JT2-2H-4,8x19

Specification

  • Applications

    • Side lap stitching of profiled steel sheets

  • Properties

    • Case-hardened steel, zinc-plated
    • With free spin zone under screw head for side lap stitching

  • Technical specifications

    • Diameter: 4.8 mm
    • Drill capacity tI + tII: 1.0 + 1.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1800 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JT2-2H-4.8x19 3592200644 4.8 0 - none 19.0 0.0 - 9.0 1000

    Specifications

    ø
    4.8
    Ø Sealing Washer mm
    0 - none
    Length
    19.0
    Clamp thickness
    0.0 - 9.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-2H-4.8x19
    Unit
    1000
    JT2-2H-4.8x19 PU100 6592200644 4.8 0 - none 19.0 0.0 - 9.0 100

    Specifications

    ø
    4.8
    Ø Sealing Washer mm
    0 - none
    Length
    19.0
    Clamp thickness
    0.0 - 9.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-2H-4.8x19 PU100
    Unit
    100
