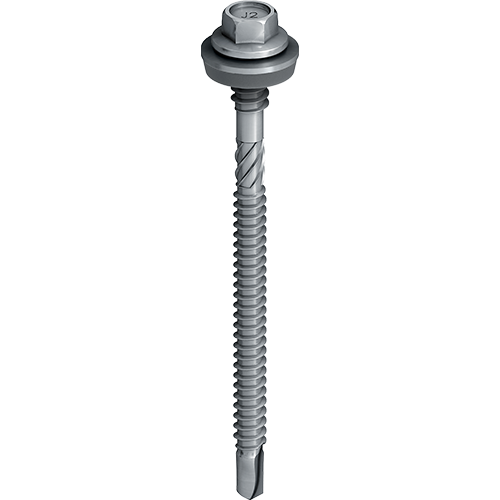

EJOT® self-drilling screw JT2-D-6-5.5/6.3 EJOGUARD

Specification

  • Applications

    • Fastening sandwich panels to 1.5 - 5 mm steel substructure
  • Properties

    • Case-hardende steel
    • EJOGUARD corrosion protection
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • High thread
  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 6.5 mm
    • Drive: Hexagon A/F8
    • ø high thread: 6.3 mm
    • Installation rotation speed: max. 1300 rpm



Filter

Selected filters

    Orderidentifier Article Number Length mm Clamp thickness mm Unit
    JT2-D-6-5.5/6.3x62-E19 EJOGUARD 3563412674 62.0 35.0 - 48.0 250

    Specifications

    Length
    62.0
    Clamp thickness
    35.0 - 48.0
    Orderidentifier
    JT2-D-6-5.5/6.3x62-E19 EJOGUARD
    Unit
    250
    JT2-D-6-5.5/6.3x82-E19 EJOGUARD 3563612674 82.0 24.0 - 68.0 150

    Specifications

    Length
    82.0
    Clamp thickness
    24.0 - 68.0
    Orderidentifier
    JT2-D-6-5.5/6.3x82-E19 EJOGUARD
    Unit
    150
    JT2-D-6-5.5/6.3x102-E19 EJOGUARD 3563812674 102.0 44.0 - 88.0 150

    Specifications

    Length
    102.0
    Clamp thickness
    44.0 - 88.0
    Orderidentifier
    JT2-D-6-5.5/6.3x102-E19 EJOGUARD
    Unit
    150
    JT2-D-6-5.5/6.3x122-E19 EJOGUARD 3567012674 122.0 64.0 - 108.0 100

    Specifications

    Length
    122.0
    Clamp thickness
    64.0 - 108.0
    Orderidentifier
    JT2-D-6-5.5/6.3x122-E19 EJOGUARD
    Unit
    100
    JT2-D-6-5.5/6.3x152-E19 EJOGUARD 3565912674 152.0 94.0 - 138.0 100

    Specifications

    Length
    152.0
    Clamp thickness
    94.0 - 138.0
    Orderidentifier
    JT2-D-6-5.5/6.3x152-E19 EJOGUARD
    Unit
    100
    JT2-D-6-5.5/6.3x172-E19 EJOGUARD 3566412674 172.0 114.0 - 158.0 100

    Specifications

    Length
    172.0
    Clamp thickness
    114.0 - 158.0
    Orderidentifier
    JT2-D-6-5.5/6.3x172-E19 EJOGUARD
    Unit
    100
    JT2-D-6-5.5/6.3x192-E19 EJOGUARD 3566612674 192.0 134.0 - 178.0 100

    Specifications

    Length
    192.0
    Clamp thickness
    134.0 - 178.0
    Orderidentifier
    JT2-D-6-5.5/6.3x192-E19 EJOGUARD
    Unit
    100
    JT2-D-6-5.5/6.3x212-E19 EJOGUARD 3566712674 212.0 154.0 - 198.0 100

    Specifications

    Length
    212.0
    Clamp thickness
    154.0 - 198.0
    Orderidentifier
    JT2-D-6-5.5/6.3x212-E19 EJOGUARD
    Unit
    100
    JT2-D-6-5.5/6.3x232-E19 EJOGUARD 3566812674 232.0 174.0 - 218.0 100

    Specifications

    Length
    232.0
    Clamp thickness
    174.0 - 218.0
    Orderidentifier
    JT2-D-6-5.5/6.3x232-E19 EJOGUARD
    Unit
    100
    JT2-D-6-5.5/6.3x262-E19 EJOGUARD 3566912674 262.0 204.0 - 248.0 100

    Specifications

    Length
    262.0
    Clamp thickness
    204.0 - 248.0
    Orderidentifier
    JT2-D-6-5.5/6.3x262-E19 EJOGUARD
    Unit
    100
