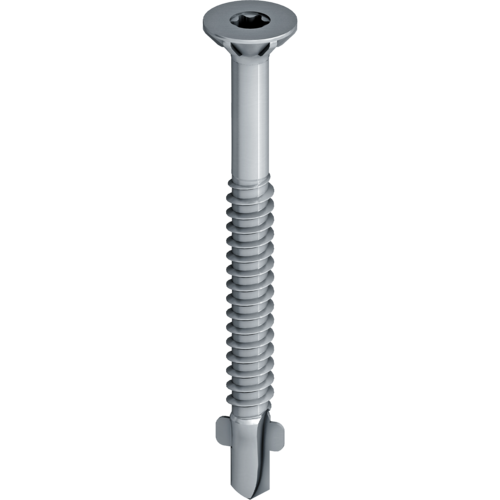

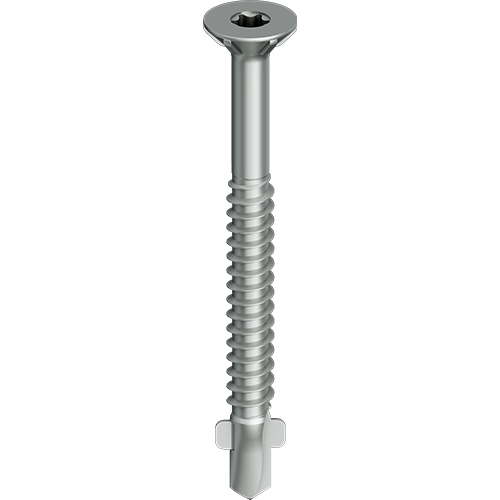

EJOT® self-drilling screw JT2-WD-5-5.5

Specification

  • Applications

    • Special screw for fastening wood to steel substructures

    Notice

    To ensure shearing of the wings, the material thickness of the steel substructure must be at least 2.5 mm

  • Properties

    • Case-hardened steel
    • Zinc-plated, blue passivated finish

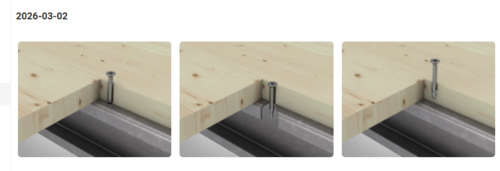

    • The wings ream out the wood larger than the thread diameter
    • The wings prevent force feeding of the screw and thus possible damage to the drill point
  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tII: 5.0 mm
    • Drive: Hexalobular drive T25

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Head length mm Clamp thickness mm Unit
    JT2-WD-5-5.5x50 7289206601 5.5 0 - none 50.0 10.8 12.0 - 35.0 200

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    0 - none
    Length
    50.0
    Head length
    10.8
    Clamp thickness
    12.0 - 35.0
    threaded length
    30.0
    For timber thickness in
    10.0 - 30.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-WD-5-5.5x50
    Unit
    200
    JT2-WD-5-5.5x60 7289207601 5.5 0 - none 60.0 10.8 12.0 - 45.0 200

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    0 - none
    Length
    60.0
    Head length
    10.8
    Clamp thickness
    12.0 - 45.0
    threaded length
    30.0
    For timber thickness in
    10.0 - 40.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-WD-5-5.5x60
    Unit
    200
    JT2-WD-5-5.5x80 7289208601 5.5 0 - none 80.0 10.8 12.0 - 65.0 200

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    0 - none
    Length
    80.0
    Head length
    10.8
    Clamp thickness
    12.0 - 65.0
    threaded length
    60.0
    For timber thickness in
    10.0 - 60.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-WD-5-5.5x80
    Unit
    200
