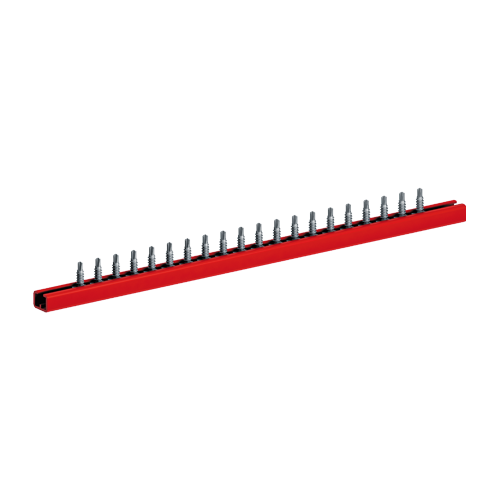

EJOT® self-drilling screw JT3-2H-4.8x19-E14 collated


Specification

  • Applications

    • Collated for speedily installation with the EJOFAST® JF screwdriver
    • Side lap stitching of profiled steel/aluminium sheets and sandwich panels

  • Properties

    • A2 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • With free spin zone under screw head for side lap stitching
    • Loose or collated

  • Technical specifications

    • Diameter: 4.8 mm
    • Drilling capacity tI + tII: 1.0 + 1.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1800 rpm
Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
JT3-2H-4.8x19-E14 collated 3380209000 4.8 14 19.0 0.0 - 4.0 500

Specifications

ø
4.8
Ø Sealing Washer mm
14
Length
19.0
Clamp thickness
0.0 - 4.0
Fastener material
Stainless Steel
Orderidentifier
JT3-2H-4.8x19-E14 collated
Unit
500
