EJOT® Self-drilling screw JT3-D-12H-5.5/6.3

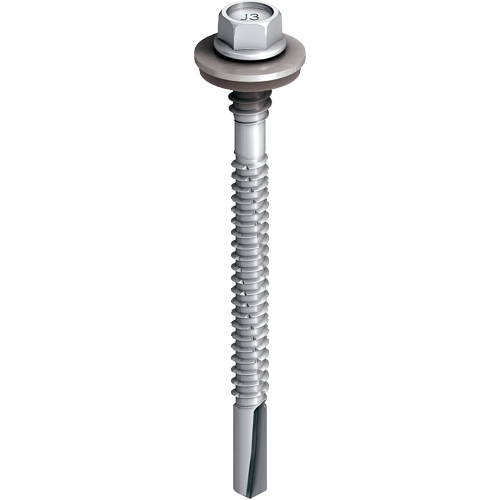

JT3-D-12H-5,56,3

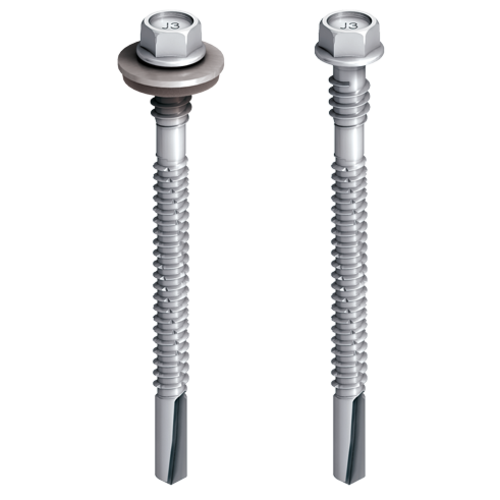

JT3-D-12H-5,56,3_nw_2016

Specification

  • Applications

    • Fastening sandwich panels to 3-12 mm steel substructure

  • Properties

    • A2 stainless steel with hardened steel drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • With free spin zone under the screw head
    • High thread

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 13 mm
    • Drive: Hexagon A/F8
    • Ø high thread: 6.3 mm
    • Installation rotation speed: max. 1300 rpm
Order information: Further lengths upon request.

Filter

Selected filters

    Orderidentifier Article Number ø mm High thread diameter mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JT3-D-12H-5.5/6.3x75-E19 3557566312 5.5 6.3 19 75.0 41.0 - 48.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    75.0
    Clamp thickness
    41.0 - 48.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-12H-5.5/6.3x75-E19
    Unit
    100
    JT3-D-12H-5.5/6.3x95-E19 3554966311 5.5 6.3 19 95.0 51.0 - 68.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    95.0
    Clamp thickness
    51.0 - 68.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-12H-5.5/6.3x95-E19
    Unit
    100
    JT3-D-12H-5.5/6.3x115-E19 3555266311 5.5 6.3 19 115.0 61.0 - 88.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    115.0
    Clamp thickness
    61.0 - 88.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-12H-5.5/6.3x115-E19
    Unit
    100
    JT3-D-12H-5.5/6.3x135-E19 3555466311 5.5 6.3 19 135.0 73.0 - 108.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    135.0
    Clamp thickness
    73.0 - 108.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-12H-5.5/6.3x135-E19
    Unit
    100
    JT3-D-12H-5.5/6.3x155-E19 3555766311 5.5 6.3 19 155.0 93.0 - 128.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    155.0
    Clamp thickness
    93.0 - 128.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-12H-5.5/6.3x155-E19
    Unit
    100
    JT3-D-12H-5.5/6.3x175-E19 3556566312 5.5 6.3 19 175.0 113.0 - 148.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    175.0
    Clamp thickness
    113.0 - 148.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-12H-5.5/6.3x175-E19
    Unit
    100
    JT3-D-12H-5.5/6.3x195-E19 3559566312 5.5 6.3 19 195.0 133.0 - 168.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    195.0
    Clamp thickness
    133.0 - 168.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-12H-5.5/6.3x195-E19
    Unit
    100
    JT3-D-12H-5.5/6.3x215-E19 3559666312 5.5 6.3 19 215.0 153.0 - 188.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    215.0
    Clamp thickness
    153.0 - 188.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-12H-5.5/6.3x215-E19
    Unit
    100
    JT3-D-12H-5.5/6.3x245-E19 3559866312 5.5 6.3 19 245.0 173.0 - 218.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    245.0
    Clamp thickness
    173.0 - 218.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-12H-5.5/6.3x245-E19
    Unit
    100
    JT3-D-12H-5.5/6.3x275-E19 3557366312 5.5 6.3 19 275.0 203.0 - 248.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    275.0
    Clamp thickness
    203.0 - 248.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-12H-5.5/6.3x275-E19
    Unit
    100
