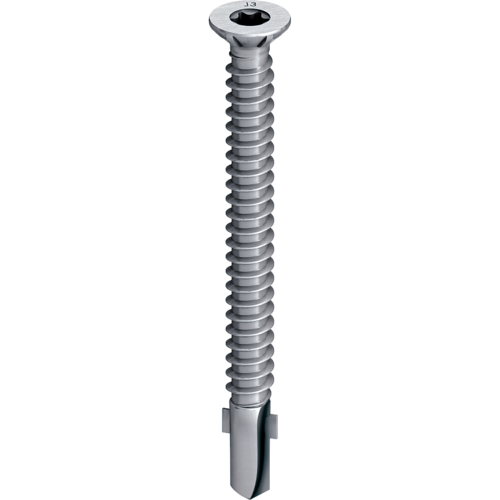

EJOT® self-drilling screw JT3-WD-6-5.5
Specification
-
Applications
- Special screw for fastening wood to steel substructures
-
Properties
- A2 stainless steel with hardened steel drill point
- The wings ream out the wood larger than the thread diameter
- The wings prevent force feeding of the screw and thus possible damage to the drill point or locking of the assembly parts
-
Technical specifications
- Diameter: 5.5 mm
- Drilling capacity tII: 5.0 mm
- Drive: Hexalobular drive TX25
- Installation rotation speed: max. 1300 rpm
Notice
To ensure shearing of the wings, the material thickness of the steel substructure must be at least 2.0 mm.
Filter
Selected filters
| Orderidentifier | Article Number | ø mm | Length mm | Clamp thickness mm | Fastener material | Unit |
|---|---|---|---|---|---|---|
| JT3-WD-6-5,5x45-R | 7382195301 | 5.5 | 45.0 | 0.0 - 26.0 | Stainless Steel | 500 |
Specifications
|
||||||
| JT3-WD-6-5,5x65-R | 7382194301 | 5.5 | 65.0 | 0.0 - 46.0 | Stainless Steel | 500 |
