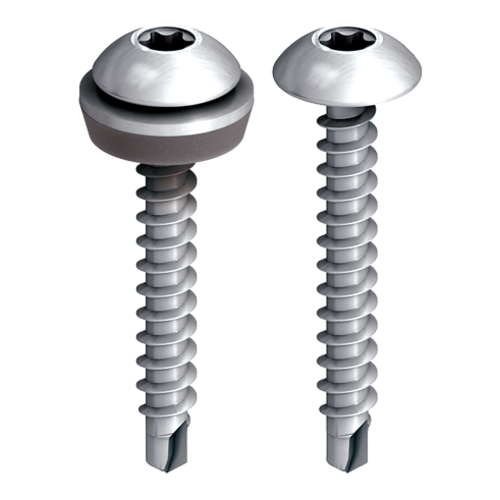

EJOT® self-drilling screw JT4-FR-2-4.9

JT4-FR-2-4,9_nw_2016

Specification

  • Applications

    • Fastening corrugated profile aluminium sheets to timber substructure
    • Fastening facade panels to timber substructure

  • Properties

    • A2 stainless steel
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • Thread according to DIN 7998
    • With truss head

  • Technical specifications

    • Diameter: 4.9 mm
    • Drilling capacity tI + tII: 0.5 - 2.0 mm
    • Drive: Hexalobular drive T25
    • Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Unit
    JT4-FR-2-4.9x35 7381110300 4.9 0 - none 35.0 100

    Specifications

    ø
    4.9
    Ø Sealing Washer mm
    0 - none
    Length
    35.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT4-FR-2-4.9x35
    Unit
    100
    JT4-FR-2-4.9x35-E11 3503568420 4.9 11 35.0 500

    Specifications

    ø
    4.9
    Ø Sealing Washer mm
    11
    Length
    35.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT4-FR-2-4.9x35-E11
    Unit
    500
