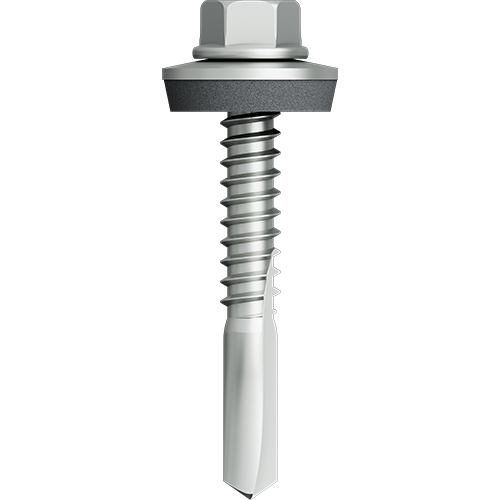

EJOT® self-drilling screw JT6-12-5.5


Specification

  • Applications

    • Fastening profiled steel and aluminium sheets and sandwich panels to 4-10 mm steel substructure
    • Fastening aluminium profiled sheets to 4-12 mm aluminium substructure

  • Properties

    • A4 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 1.0 + 12.0 mm / 2.0 + 10.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1300 rpm
Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Fastener material Unit
JT6-12-5.5x40-E16 3595681991 5.5 16 40.0 0.0 - 11.0 Stainless Steel 500

Specifications

ø
5.5
Ø Sealing Washer mm
16
Length
40.0
Clamp thickness
0.0 - 11.0
Fastener material
Stainless Steel
Orderidentifier
JT6-12-5.5x40-E16
Unit
500
