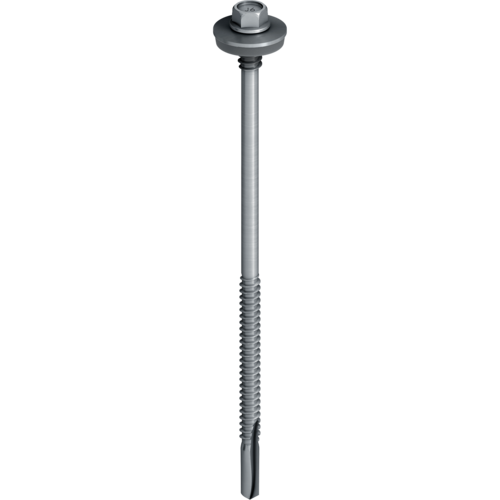

EJOT® self drilling screw JT6-D-12H-5,5/6,3

JT6-D-12H-5,5-6,3
JT6-D-12H-5,5_6,3x135_Pos2_1200x1200px

Specification

  • Applications

    • Fastening sandwich panels to 3 - 12 mm steel substructure

  • Properties

    • A4 stainless steel with hardened steel drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • With free spin zone under the screw head
    • High thread

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 13 mm
    • Drive: Hexagon A/F8
    • Ø high thread: 6.3 mm
    • Installation rotation speed: max. 1300 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm High thread diameter mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JT6-D-12H-5.5/6.3x135-E19 3555482911 5.5 6.3 19 135.0 82.0 - 110.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    135.0
    Clamp thickness
    82.0 - 110.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-12H-5.5/6.3x135-E19
    Unit
    100
    JT6-D-12H-5.5/6.3x155 E19 3555782911 5.5 6.3 19 155.0 102.0 - 130.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    155.0
    Clamp thickness
    102.0 - 130.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-12H-5.5/6.3x155 E19
    Unit
    100
    JT6-D-12H-5.5/6.3x175 E19 3556582912 5.5 6.3 19 175.0 120.0 - 150.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    175.0
    Clamp thickness
    120.0 - 150.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-12H-5.5/6.3x175 E19
    Unit
    100
    JT6-D-12H-5.5/6.3x195 E19 3559582912 5.5 6.3 19 195.0 133.0 - 168.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    195.0
    Clamp thickness
    133.0 - 168.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-12H-5.5/6.3x195 E19
    Unit
    100
    JT6-D-12H-5.5/6.3x245 E19 3559882912 5.5 6.3 19 245.0 173.0 - 218.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    245.0
    Clamp thickness
    173.0 - 218.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-12H-5.5/6.3x245 E19
    Unit
    100
