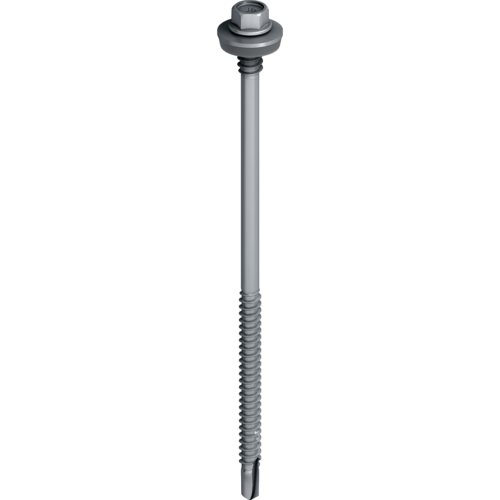

EJOT® self drilling screw JT6-D-6H-5,5/6,3

JT6-D-6H-5,5-6,3

Specification

  • Applications

    • Fastening sandwich panels to 1.5 - 5 mm steel substructure
    • For high-strength steel substructures

  • Properties

    • A4 stainless steel with hardened steel drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • With free spin zone under the screw head
    • High thread

  • Technical specifications

    • Diameter: 5.5 mm
    • Drill capacity tI + tII: 6.5 mm
    • A/F8 hexagon drive
    • Ø high thread: 6.3 mm
    • Installation rotation speed: n = 1.300 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm High thread diameter mm Ø Sealing Washer mm Length mm Unit
    JT6-D-6H-5.5/6.3x127-E19 3556282971 5.5 6.3 19 127.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    127.0
    Clamp thickness
    71.0 - 108.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-6H-5.5/6.3x127-E19
    Unit
    100
    JT6-D-6H-5.5/6.3x147-E19 3556382971 5.5 6.3 19 147.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    147.0
    Clamp thickness
    91.0 - 128.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-6H-5.5/6.3x147-E19
    Unit
    100
    JT6-D-6H-5.5/6.3x167-E19 3556782971 5.5 6.3 19 167.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    167.0
    Clamp thickness
    111.0 - 148.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-6H-5.5/6.3x167-E19
    Unit
    100
    JT6-D-6H-5.5/6.3x197-E19 3559782972 5.5 6.3 19 197.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    197.0
    Clamp thickness
    178.0 - 144.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-6H-5.5/6.3x197-E19
    Unit
    100
    JT6-D-6H-5.5/6.3x237-E19 3559682972 5.5 6.3 19 237.0 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    19
    Length
    237.0
    Clamp thickness
    171.0 - 218.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT6-D-6H-5.5/6.3x237-E19
    Unit
    100
