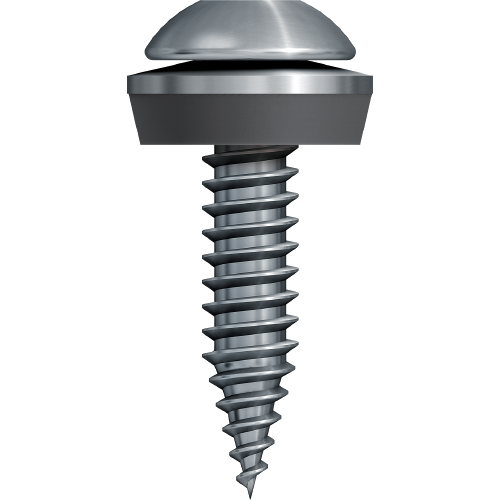

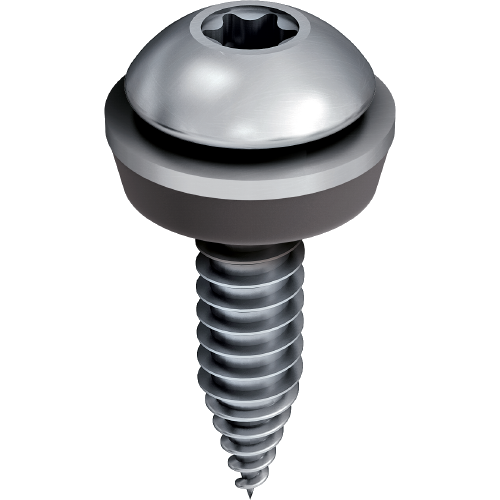

EJOFAST® self-drilling screw JF3-FR-2-5.5
Specification
-
Applications
Fastening components and brackets to thin-walled metal profiles for photovoltaic installations:
- Fastening trapezoidal sheet flashings, clips for fixing standing seam systems or pre-punched retainers to thin-walled steel substructures (e.g. profiled sheets)
- Fixing wind deflector sheets to profiled elements
-
Properties
- A2 stainless steel with hardened steel drill point
- Stainless steel sealing washer
- Pre-assembled sealing washer
- Non-kid application
- Fastening with reduced swarf
- Excellent gripping properties
- With truss head
-
Technical specifications
- Diameter: 5.5 mm
- Drill capacity tI + tII: 1.0 + 1.0 mm
- Drive: Hexalobular drive T25
- Installation rotation speed: max. 1800 rpm
*JF6 realizat din oțel inoxidabil la cerere
| Orderidentifier | Article Number | ø mm | Ø Sealing Washer mm | Length mm | Clamp thickness mm | Unit | |
|---|---|---|---|---|---|---|---|
| JF3-FR-2-5.5x25-E11 | 3593292391 | 5.5 | 11 | 25.0 | 0.0 - 7.0 | Stainless Steel | 500 |
