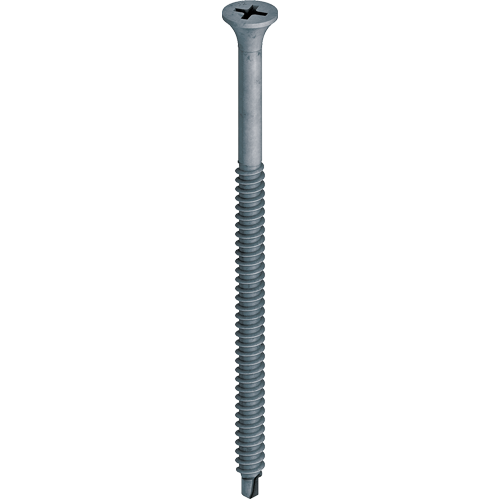

DABO® screw TKR-4.8
![[TKR-4_8].png](/medias/sys_master/products/products/hbf/h30/9106939641886/-TKR-4-8-75Wx75H.png)
Specification
-
Applications
- To fix roofing membrane to substructures made of sheet steel ≥ 0.75 mm ≤ 1 mm
- For combination with EJOT® stress plates
-
Properties
- Case-hardened steel
- Climadur coated - high-quality coating to improve corrosion protection (15 Kesternich cycles, DIN 50018, 1997)
- Can be delivered belted for EJOT® ECOset installation tool or pre-assembled with EJOT® stress plates HTK for EJOT® ECOset HTK installation tool.
- With bugle head
-
Technical specifications
- Diameter: 4.8 mm
- Drilling capacity: 1.5 mm
- Drive: Cross recess PH 2
Length determination (min. lengths):
Sheet steel: Insulation thickness + 20 mm
Timber: Insulation thickness + 30 mm
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | Unit |
|---|---|---|---|
| TKR 4.8 x 35 | 6496700629 | 35.0 | |
Specifications
|
|||
| TKR 4.8 x 50 | 6496800629 | 50.0 | |
Specifications
|
