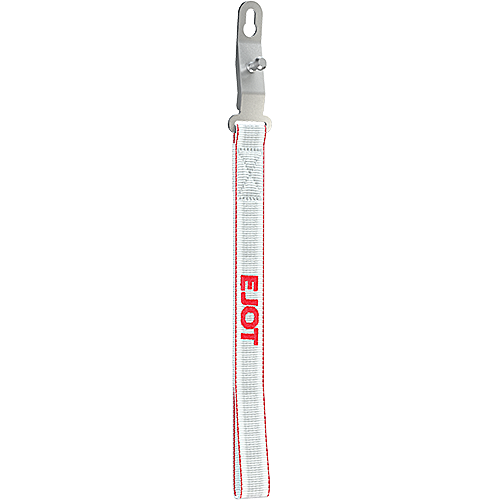

EJOT® Window carrying strap

Specification

  • Applications

    • To support window elements
    • Can also be used in combination with EJOT window carrying strap screw
    • Fastening in the anchor hole Ø 10 mm

    Note

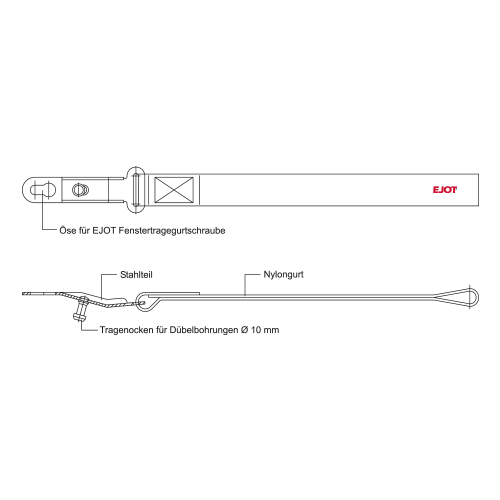

    • Carrying cams of the EJOT window carrying strap are inserted into the anchor hole Ø 10 mm
    • Grommet is placed on the EJOT window carrying strap screw
    • Bearing load of carrying cams with anchor hole 10 mm, max. 80 kg
    • Bearing load with carrying strap screw max. 320 kg
  • Properties

    • Bearing load of carrying cams with anchor hole 10 mm max. 80 kg
    • Bearing load with carrying strap screw max. 320 kg
    • Nylon carrying strap
Orderidentifier Article Number Unit
Carrying strap 9000060086 100

Specifications

Orderidentifier
Carrying strap
Unit
100
