Drives and Head Styles

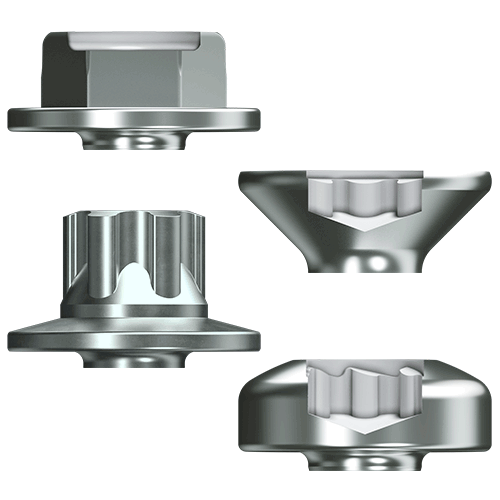

IND-Produktbilder-Antriebe-Koepfe-1-EJOT

Specification

  • Overview

    Overview of available screw drives and head geometries at EJOT.

Hotline

Applications Engineer


CAD & more on ejot.com

With the one-time registration we provide in this area CAD data in various formats as well as PDFs of the technical drawings of our products DELTA PT®, SHEETtracs® and ALtracs® Plus.
Additionally, CAD & more offers you the possibility to design your individual joints with the aid of prognosis programs or to check their feasibility by APPLICATION CHECKs. Furthermore, you can download the latest product brochures, technical publications and the EJOT company standards.


CAD & more

EJOT Drives

1. Z Cross recess Pozidriv
2. Z Combi cross recess Pozidriv
3. H Cross recess Phillips
4. H Combi cross recess Phillips
5. C Cross recess Camera cross recess according to JCIS
6. Combi TORX®
7. TORX®
8. Tamper Resistant TORX®
9. TORX PLUS®
10. Tamper Resistant TORX PLUS®
11. Three star
12. Hexagon socket
13. Hexagon
14. One way
External TORX® (not pictured)
TORX® PARALOBETM (not illustrated)

EJOT Head Styles

1. pan head with cross recess Z (or H)
2. pan head with TORX PLUS®/AUTOSERT
3. round washer head with TORX PLUS®/AUTOSERT
4. hexagon washer head
5. hexagon flange head
6. round washer head with cross-recess Z (or H)
7. flat countersunk head with TORX PLUS®/AUTOSERT
8. flat countersunk head with cross recess Z (or H)
9. oval countersunk head with TORX PLUS®/AUTOSERT

external-TORX with small flange (not illustrated)
external-TORX with large flange (not illustrated)
