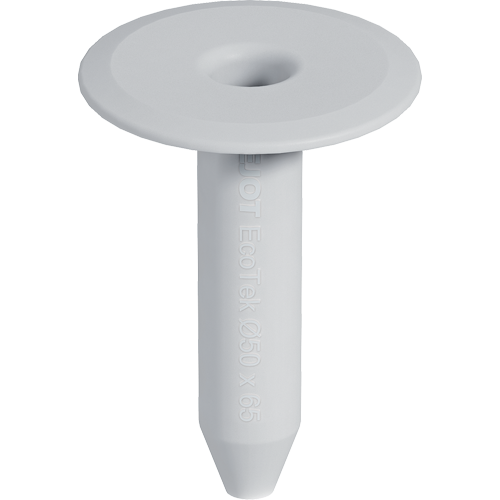

EcoTek 50


Specification

  • Applications

    • To fix roofing membrane to substructures made of concrete, aerated concrete, trapezoidal steel profiles, timber and wood-based materials
    • For special requirements of resistance to imposed loads
    • To reduce thermal bridges

    Notice

     For combination with EJOT® Dabo screws / with concrete and aerated concrete screws

  • Properties

    • High-grade plastic material
    • Telescope design for resistance to imposed loads
    • In combination for insulation material thicknesses up to 590 mm (FBS-R) and up to 605 mm (TKR)
    • Telescope design, prevents screw head protrusion due to foot traffic even with soft insulating material

  • Note

    In combination with EJOT Dabo® screws / with concrete and aerated concrete screws

Filter

Selected filters

    Orderidentifier Article Number Length mm Recess Depth mm Unit
    EcoTek-50x35 8595035007 35.0 25.0 2000

    Specifications

    Length
    35.0
    Recess Depth
    25.0
    Orderidentifier
    EcoTek-50x35
    Unit
    2000
    EcoTek-50x65 8595065007 65.0 55.0 1300

    Specifications

    Length
    65.0
    Recess Depth
    55.0
    Orderidentifier
    EcoTek-50x65
    Unit
    1300
    EcoTek-50x85 8595085007 85.0 75.0 1000

    Specifications

    Length
    85.0
    Recess Depth
    75.0
    Orderidentifier
    EcoTek-50x85
    Unit
    1000
    EcoTek-50x105 8595105007 105.0 95.0 800

    Specifications

    Length
    105.0
    Recess Depth
    95.0
    Orderidentifier
    EcoTek-50x105
    Unit
    800
    EcoTek-50x135 8595135007 135.0 125.0 600

    Specifications

    Length
    135.0
    Recess Depth
    125.0
    Orderidentifier
    EcoTek-50x135
    Unit
    600
    EcoTek-50x165 8595165007 165.0 155.0 450

    Specifications

    Length
    165.0
    Recess Depth
    155.0
    Orderidentifier
    EcoTek-50x165
    Unit
    450
    EcoTek-50x195 8595195007 195.0 185.0 350

    Specifications

    Length
    195.0
    Recess Depth
    185.0
    Orderidentifier
    EcoTek-50x195
    Unit
    350
    EcoTek-50x225 8595225007 225.0 215.0 300

    Specifications

    Length
    225.0
    Recess Depth
    215.0
    Orderidentifier
    EcoTek-50x225
    Unit
    300
    EcoTek-50x275 8595275007 275.0 265.0 300

    Specifications

    Length
    275.0
    Recess Depth
    265.0
    Orderidentifier
    EcoTek-50x275
    Unit
    300
    EcoTek 50x335 8595335007 335.0 325.0 250

    Specifications

    Length
    335.0
    Recess Depth
    325.0
    Orderidentifier
    EcoTek 50x335
    Unit
    250
