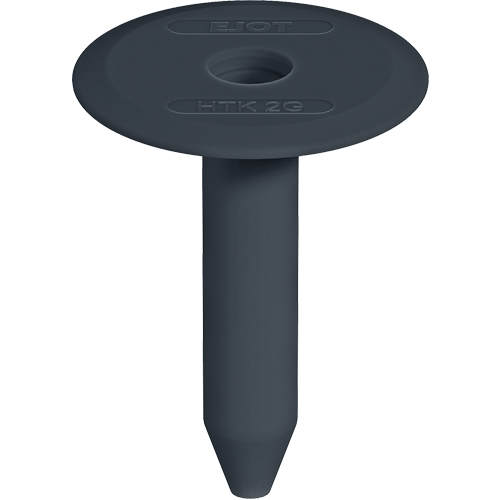

EJOT® stress plate HTK 2G 50

Specification

Applications

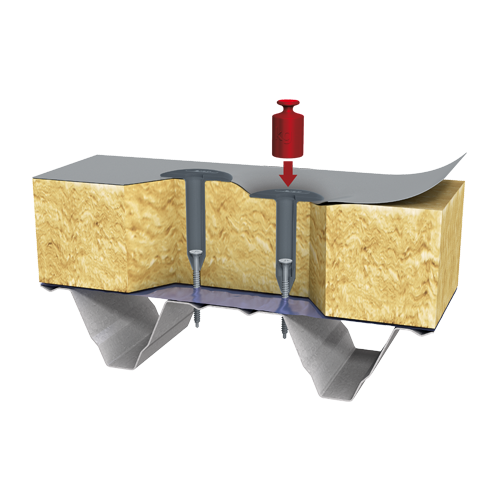

- To secure roofing membrane to substructures made of trapezoidal steel profiles, wood and wood-based materials
- New buildings and renovations
- For special requirements of resistance to imposed loads
- To reduce thermal bridges
- For installation with EJOT^® ECOSET HTK tools (length 35-145 mm)
Notice
For combination with EJOT Dabo^® screws
Properties
- High-grade plastic material
- Telescope design for resistance to imposed loads
- For insulating material thicknesses up to 605 mm
- Available loosely pre-assembled or collated
Note

For combination with EJOT Dabo^® screws

Orderidentifier	Article Number	ø mm	Recess Depth mm	Unit
HTK-2G-50x15	8587015070	50.0	15.0	3000
Specifications ø 50.0 Recess Depth 15.0 Orderidentifier HTK-2G-50x15 Unit 3000
HTK-2G-50x35	8587035070	50.0	35.0	1800
Specifications ø 50.0 Recess Depth 35.0 Orderidentifier HTK-2G-50x35 Unit 1800
HTK-2G-50x55	8587055070	50.0	55.0	1500
Specifications ø 50.0 Recess Depth 55.0 Orderidentifier HTK-2G-50x55 Unit 1500
HTK-2G-50x95	8587095070	50.0	95.0	800
Specifications ø 50.0 Recess Depth 95.0 Orderidentifier HTK-2G-50x95 Unit 800
HTK-2G-50x115	8587115070	50.0	115.0	800
Specifications ø 50.0 Recess Depth 115.0 Orderidentifier HTK-2G-50x115 Unit 800
HTK-2G-50x145	8587145070	50.0	145.0	600
Specifications ø 50.0 Recess Depth 145.0 Orderidentifier HTK-2G-50x145 Unit 600
HTK-2G-50x185	8587185070	50.0	185.0	400
Specifications ø 50.0 Recess Depth 185.0 Orderidentifier HTK-2G-50x185 Unit 400
HTK-2G-50x225	8587225070	50.0	225.0	300
Specifications ø 50.0 Recess Depth 225.0 Orderidentifier HTK-2G-50x225 Unit 300
HTK-2G-50x275	8587275070	50.0	275.0	300
Specifications ø 50.0 Recess Depth 275.0 Orderidentifier HTK-2G-50x275 Unit 300
HTK-2G-50x325	8587325070	50.0	325.0	250
Specifications ø 50.0 Recess Depth 325.0 Orderidentifier HTK-2G-50x325 Unit 250
