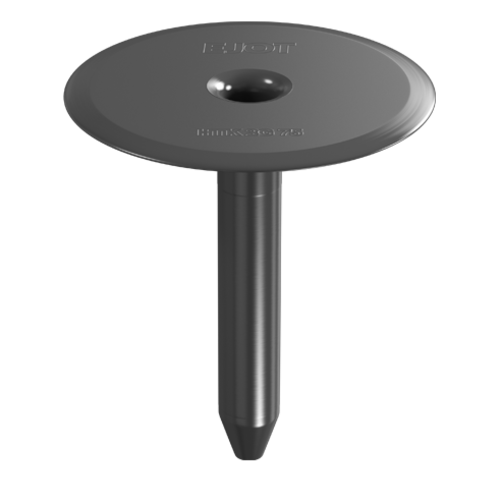

EJOT® stress plate HTK 2G 75

Specification

Applications
- For the structural fixation of insulations to substructures made of trapezoidal steel profiles, timber and wood-based materials
- For new buidlings and renovation (cf. current Flat Roof Guideline)
- For special requirements of resistance to imposed loads
- To reduce thermal bridges
Properties
- High-grade plastic material
- Telescope design for resistance to imposed loads
- For insulating material thicknesses up to 425 mm
- Loosely pre-assembled
Note
For combination with EJOT Dabo^® screws

English

French

Orderidentifier	Article Number		Unit
HTK-2G-75x35	8575035070	35.0	100
Specifications Recess Depth 35.0 Orderidentifier HTK-2G-75x35 Unit 100
HTK-2G-75x55	8575055070	55.0	100
Specifications Recess Depth 55.0 Orderidentifier HTK-2G-75x55 Unit 100
HTK-2G-75x95	8575095070	95.0	100
Specifications Recess Depth 95.0 Orderidentifier HTK-2G-75x95 Unit 100
HTK-2G-75x145	8575145070	145.0	100
Specifications Recess Depth 145.0 Orderidentifier HTK-2G-75x145 Unit 100
